PROCOMP USA, INC.
PBT-445C VLB
|
| |
|
Data bus: |
32-bit VL Bus |
|
Size: |
Three-quarter length, half-height card |
|
Hard drive supported: |
Up to seven Fast SCSI-2 devices |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

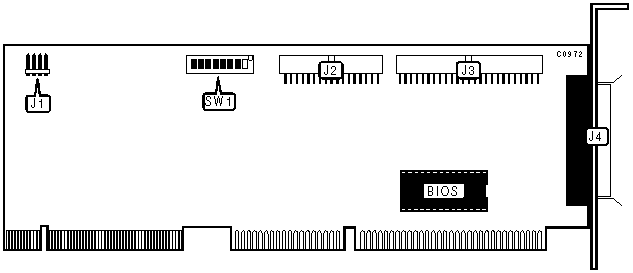

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector - drive active LED |
J1 |
|
34-pin cable connector - floppy drive |
J2 |
|
50-pin SCSI connector - internal |
J3 |
|
50-pin SCSI connector - external |
J4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Local bus clock speed is >33 MHz |
SW1/4 |
On |
|
Local bus clock speed is <=33 MHz |
SW1/4 |
Off | |
| » |
Floppy drive interface enabled |
SW1/8 |
On |
|
Floppy drive interface disabled |
SW1/8 |
Off | |
|
BIOS ADDRESS SELECTION | ||||
|
Address |
SW1/5 |
SW1/6 |
SW1/7 | |
|
C8000h |
Off |
On |
Off | |
|
CC000h |
On |
On |
Off | |
|
D0000h |
Off |
Off |
On | |
|
D4000h |
On |
Off |
On | |
|
D8000h |
Off |
On |
On | |
| » |
DC000h |
On |
On |
On |
|
Disabled |
N/A |
Off |
Off | |
|
BASE I/O ADDRESS SELECTION | ||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 | |
|
130h |
On |
On |
Off | |
|
134h |
Off |
On |
Off | |
|
230h |
On |
Off |
On | |
|
234h |
Off |
Off |
On | |
| » |
330h |
On |
On |
On |
|
334h |
Off |
On |
On | |
