PINE TECHNOLOGY
AI-1078E
|
Card Type |
Controller card |
|
Hard Drives supported |
Two IDE (AT) drives |
|
Floppy drives supported |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|
I/O Options |
Floppy drive interface, game port, IDE interface, parallel port, serial ports (2) |
|
Data Bus |
16-bit ISA |
|
Card Size |
Half-length, half-height card |
|

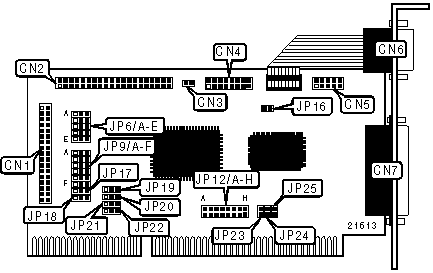

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
34-pin cable connector - floppy drive |
CN1 |
10-pin serial port 2 - internal |
CN5 |
|
40-pin IDE(AT) connector |
CN2 |
9-pin serial port 1 - external |
CN6 |
|
2-pin connector - IDE drive active LED |
CN3 |
25-pin parallel port - external |
CN7 |
|
16-pin game port - internal |
CN4 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Floppy drive order is normal (A:, B:) |
JP6/A |
Pins 1 & 2 closed |
|
Floppy drive order is reversed (B:, A:) |
JP6/A |
Pins 2 & 3 closed | |
| » |
Floppy drive address is 3F0h |
JP6/B |
Pins 2 & 3 closed |
|
Floppy drive address is 370h |
JP6/B |
Pins 1 & 2 closed | |
| » |
IDE(AT) interface enabled |
JP6/C |
Pins 1 & 2 closed |
|
IDE(AT) interface disabled |
JP6/C |
Pins 2 & 3 closed | |
| » |
IDE(AT) address is 3F0h, 1F0h |
JP6/D |
Pins 2 & 3 closed |
|
IDE(AT) address is 370h, 170h |
JP6/D |
Pins 1 & 2 closed | |
| » |
Floppy drive interface enabled |
JP6/E |
Pins 1 & 2 closed |
|
Floppy drive interface disabled |
JP6/E |
Pins 2 & 3 closed | |
| » |
Game port enabled |
JP16 |
Closed |
|
Game port disabled |
JP16 |
Open | |
| » |
IDE interface interrupt set to IRQ14 |
JP19 |
Pins 1 & 2 closed |
|
IDE interface interrupt set to IRQ15 |
JP19 |
Pins 2 & 3 closed | |
| » |
DRQ1 enabled |
JP20 |
Pins 1 & 2 closed |
|
DRQ3 enabled |
JP20 |
Pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
JP21 |
Unidentified |
| » |
Factory configured - do not alter |
JP22 |
Unidentified |
|
SERIAL PORT 1 ADDRESS SELECTION | |||
|
Setting |
JP9/A |
JP9/B | |
| » |
COM1 (3F8h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
COM3 (3E8h) |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
|
Disabled |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
SERIAL PORT 2 ADDRESS SELECTION | |||
|
Setting |
JP9/C |
JP9/D | |
| » |
COM2 (2F8h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
COM4 (2E8h) |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
|
Disabled |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
SERIAL PORT 1 INTERRUPT SELECTION | ||||
|
IRQ |
JP12/A |
JP12/B |
JP12/C | |
|
3 |
Closed |
Open |
Open | |
| » |
4 |
Open |
Closed |
Open |
|
5 |
Open |
Open |
Closed | |
|
SERIAL PORT 2 INTERRUPT SELECTION | ||||
|
IRQ |
JP12/D |
JP12/E |
JP12/F | |
| » |
3 |
Closed |
Open |
Open |
|
4 |
Open |
Closed |
Open | |
|
5 |
Open |
Open |
Closed | |
|
PARALLEL PORT ADDRESS SELECTION | |||
|
Setting |
JP9/E |
JP9/F | |
| » |
LPT1 (378h) |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
LPT2 (278h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
|
LPT3 (3BCh) |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
Disabled |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
PARALLEL PORT INTERRUPT SELECTION | |||
|
IRQ |
JP12/G |
JP12/H | |
|
5 |
Closed |
Open | |
| » |
7 |
Open |
Closed |
|
PARALLEL PORT MODE SELECTION | |||
|
Setting |
JP17 |
JP18 | |
| » |
Printer |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
EPP/ECP |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
EPP/SPP |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
|
EXT2FDD |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
PRINTER OUTPUT & DACK SELECTION | ||||
|
Setting |
JP23 |
JP24 |
JP25 | |
| » |
Uni-directional |
Closed |
Open |
Open |
|
Bi-Directional (EPP/ECP) |
Open |
Open |
Open | |
|
DACK1 |
Open |
Closed |
Open | |
|
DACK3 |
Open |
Open |
Closed | |
