SILICON VALLEY COMPUTER, INC.
ADP65
|
|
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Up to four IDE (AT) Interface drives or up to two IDE tape drives
Floppy drives supported: Up to four 360KB, 720KB, 1.2MB, or 1.44MB
|

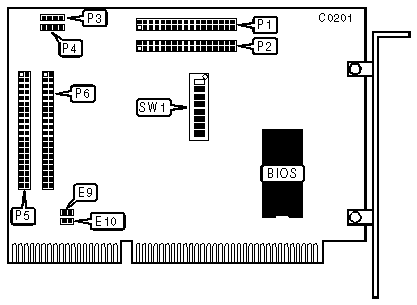

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector-floppy drives 0 and 1 |
P1 |
|
34-pin control cable connector-floppy drives 2 and 3 |
P2 |
|
4-pin connector-Drive active LED for P5 |
P3 |
|
4-pin connector-Drive active LED for P6 |
P4 |
|
40-pin IDE (AT) Interface connector (Drives 0 and 1) |
P5 |
|
40-pin IDE (AT) Interface connector (Drives 2 and 3) |
P6 |
|
Note: Connector P5 only supports hard drives, any tape drives must be chained from P6. | |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Reserved for ROM Size, must be left as shipped |
SW1/switch 7 |
off |
| » |
Floppy drive enabled |
SW1/switch 8 |
on |
|
Floppy drive disabled |
SW1/switch 8 |
off | |
| » |
IRQ15 enabled on CN6 |
E9 |
closed |
|
IRQ15 disabled |
E9 |
open | |
| » |
IRQ14 enabled on CN5 |
E10 |
closed |
|
IRQ14 disabled |
E10 |
open | |
|
PORT ADDRESS CONFIGURATION | ||||
|
HD Port 1 (CN5) |
HD Port 2 (CN6) |
SW1/switch 4 |
SW1/switch 5 |
SW1/switch 6 |
|
Disabled |
Disabled |
off |
off |
off |
|
1F0-1F7h |
Disabled |
off |
on |
off |
|
170-177h |
Disabled |
off |
on |
on |
|
1F0-1F7h |
170-177h |
on |
on |
off |
|
BIOS ADDRESS | ||||
|
Address |
SW1/switch 1 |
SW1/switch 2 |
SW1/switch 3 | |
|
Disabled |
off |
off |
off | |
| » |
C800h / 8K |
on |
off |
off |
|
CA00h / 8K |
off |
on |
off | |
|
C800h / 16K |
on |
on |
off | |
|
CC00h / 8K |
on |
off |
on | |
|
CE00h / 8K |
off |
on |
on | |
|
CC00h / 16K |
on |
on |
on | |
