TRANTOR SYSTEMS, LTD.
T128
|
|
Data bus: 8-bit, ISA
Size: Three-quarter length, full-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: None
|

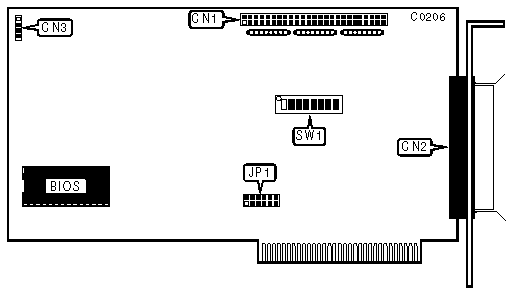

CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI connector-internal |
CN1 |
|
50-pin SCSI connector-external |
CN2 |
|
4-pin connector-Drive Active LED |
CN3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Full Handshake Interlock disabled |
SW1/switch 4 |
off |
|
Full Handshake Interlock enabled |
SW1/switch 4 |
on | |
| » |
BIOS enabled |
SW1/switch 5 |
on |
|
BIOS disabled |
SW1/switch 5 |
off | |
| » |
Zero wait-state enabled |
SW1/switch 6 |
on |
|
Zero wait-state disabled |
SW1/switch 6 |
off | |
|
BIOS ADDRESS | ||
|
Address |
SW1/switch 7 |
SW1/switch 8 |
|
CC000h |
on |
on |
|
C8000h |
on |
off |
|
DC000h |
off |
on |
|
D8000h |
off |
off |
|
INTERRUPT REQUEST | ||
|
IRQ |
JP1 |
Position |
|
IRQ3 |
pins 2 & 4 only |
closed |
|
IRQ5 |
pins 1 & 3 only |
closed |
|
IRQ7 |
pins 3 & 5 only |
closed |
|
Disabled |
pins 1 through 6 |
open |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Note: SW1/switch 1-3 are reserved and must be left ‘open’. JP1/pins 7-12 are not used. |
