SILICON VALLEY COMPUTER, INC.
ADP60
|
|
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
|

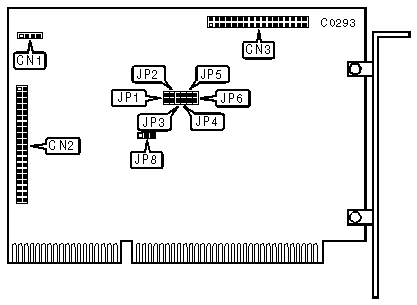

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector-drive active LED |
CN1 |
|
40-pin IDE (AT) Interface connector-internal |
CN2 |
|
34-pin data cable connector-floppy drive |
CN3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Floppy drive enabled |
JP1 |
open |
|
Floppy drive disabled |
JP1 |
closed | |
| » |
Single-speed floppy drive supported |
JP2 |
open |
|
Dual-speed floppy drive supported |
JP2 |
closed | |
| » |
Floppy drive precompensation is 187nsec. |
JP3 |
open |
|
Floppy drive precompensation is 125nsec |
JP3 |
closed | |
| » |
Hard drive port address 1F0-1F7h |
JP4 |
open |
|
Hard drive port address 170-177h |
JP4 |
closed | |
| » |
BIOS address is C800 |
JP5 |
open |
|
BIOS address is CA00 |
JP5 |
closed | |
| » |
BIOS ROM size is 8KB |
JP6 |
open |
|
BIOS ROM size is 16KB |
JP6 |
closed | |
|
BIOS enabled |
JP7 |
closed | |
| » |
BIOS enabled |
JP8 |
pins 1 & 2 closed |
|
BIOS disabled |
JP8 |
pins 2 & 3 closed | |
