SILICON VALLEY COMPUTER, INC.
ADP90VL
|
| |
|
Data bus: |
32-bit VESA |
|
Size: |
Three-quarter length, full-height card |
|
Hard drive supported: |
Four IDE(AT) interface devices |
|
Floppy drives supported: |
360KB, 720KB, 1.2MB, 1.44MB |
|

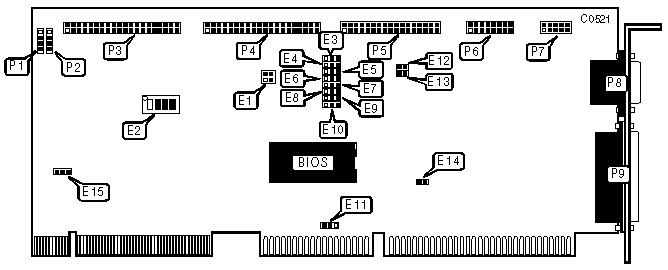

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector - drive active LED |
P1 |
|
4-pin connector - drive active LED |
P2 |
|
40-pin IDE(AT) interface VESA connector |
P3 |
|
40-pin IDE(AT) interface ISA tape drive connector |
P4 |
|
34-pin control cable connector - floppy drive |
P5 |
|
15-pin game port - internal |
P6 |
|
9-pin serial port - internal |
P7 |
|
9-pin serial port - external |
P8 |
|
25-pin parallel port - external |
P9 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Serial port 1 enabled |
E3 |
pins 2 & 3 closed |
|
Serial port 1 disabled |
E3 |
pins 1 & 2 closed | |
| » |
Serial port 1 address 3F8h select |
E4 |
pins 2 & 3 closed |
|
Serial port 1 address 3E8h select |
E4 |
pins 1 & 2 closed | |
| » |
Serial port 2 enabled |
E5 |
pins 2 & 3 closed |
|
Serial port 2 disabled |
E5 |
pins 1 & 2 closed | |
|
USER CONFIGURABLE SETTINGS(CONTINUED) | |||
|
Function |
Location |
Setting | |
| » |
Serial port 2 address 2F8h select |
E6 |
pins 2 & 3 closed |
|
Serial port 2 address 2E8h select |
E6 |
pins 1 & 2 closed | |
| » |
Parallel port enabled |
E7 |
pins 2 & 3 closed |
|
Parallel port disabled |
E7 |
pins 1 & 2 closed | |
| » |
Parallel port address 378h select |
E8 |
pins 2 & 3 closed |
|
Parallel port address 278h select |
E8 |
pins 1 & 2 closed | |
| » |
Floppy drive interface enabled |
E9 |
pins 2 & 3 closed |
|
Floppy drive interface disabled |
E9 |
pins 1 & 2 closed | |
| » |
ISA IDE(AT) interface enabled |
E10 |
pins 2 & 3 closed |
|
ISA IDE(AT) interface disabled |
E10 |
pins 1 & 2 closed | |
| » |
ISA IDE(AT) interface interrupt IRQ15 select |
E11 |
pins 2 & 3 closed |
|
ISA IDE(AT) interface interrupt IRQ10 select |
E11 |
pins 1 & 2 closed | |
| » |
Game port enabled |
E12 & E13 |
closed |
|
Game port disabled |
E12 & E13 |
open | |
| » |
8/16KB BIOS enabled |
E14 |
open |
|
32KB BIOS enabled |
E14 |
closed | |
| » |
Factory configured - do not alter |
E15 |
N/A |
|
BASE MEMORY ADDRESS SELECT | |
|
Address |
E1 |
|
C8000h |
All open |
|
CA000h |
pins 3 & 4 closed |
|
CC000h |
pins 1 & 2 closed |
|
CE000h |
pins 1 & 2, 3 & 4 closed |
|
VESA IDE TRANSFER RATE | |||||
|
System Speed(Mhz) |
Mbyte/sec |
E2/1 |
E2/2 |
E2/3 |
E2/4 |
|
25/DX2-50 |
1.67 |
on |
on |
on |
on |
|
25/DX2-50 |
2.00 |
off |
on |
on |
on |
|
25/DX2-50 |
2.50 |
on |
off |
on |
on |
|
25/DX2-50 |
2.94 |
off |
off |
on |
on |
|
25/DX2-50 |
3.12 |
on |
on |
off |
on |
|
25/DX2-50 |
4.16 |
off |
on |
off |
on |
|
25/DX2-50 |
4.54 |
on |
off |
off |
on |
|
25/DX2-50 |
6.25 |
off |
off |
off |
on |
|
VESA IDE TRANSFER RATE(CONTINUED) | |||||
|
System Speed(Mhz) |
Mbyte/sec |
E2/1 |
E2/2 |
E2/3 |
E2/4 |
|
33/DX2-66 |
2.22 |
on |
on |
on |
on |
|
33/DX2-66 |
2.66 |
off |
on |
on |
on |
|
33/DX2-66 |
3.33 |
on |
off |
on |
on |
|
33/DX2-66 |
3.92 |
off |
off |
on |
on |
|
33/DX2-66 |
4.16 |
on |
on |
off |
on |
|
33/DX2-66 |
5.55 |
off |
on |
off |
on |
|
33/DX2-66 |
6.06 |
on |
off |
off |
on |
|
33/DX2-66 |
8.33 |
off |
off |
off |
on |
|
50 |
3.33 |
on |
on |
on |
on |
|
50 |
4.00 |
off |
on |
on |
on |
|
50 |
5.00 |
on |
off |
on |
on |
|
50 |
5.88 |
off |
off |
on |
on |
|
50 |
6.25 |
on |
on |
off |
on |
|
50 |
8.33 |
off |
on |
off |
on |
|
50 |
9.09 |
on |
off |
off |
on |
|
50 |
12.5 |
off |
off |
off |
on |
