Data bus:	16-bit ISA
Size:	Half-length, full-height card
Hard drive supported:	Unidentified
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

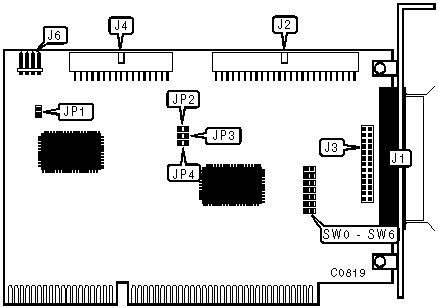

CONNECTIONS
Function	Location
50-pin SCSI connector - external	J1
50-pin SCSI connector - internal	J2
26-pin SCSI connector - internal	J3
34-pin control cable connector - floppy drive	J4
4-pin connector - drive active LED	J6

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy controller enabled	JP1	open
	Floppy controller disabled	JP1	closed
»	I/O base address is 330h - 33Fh	JP2	open
	I/O base address is 230h - 23Fh	JP2	closed
»	FDISK enabled for drive 2	SW0	open
	Use ZDRV.SYS device driver for drive 2	SW0	closed
»	DMA channel 7 select	SW1	open
	DMA channel 6 select	SW1	closed
»	Factory configured - do not alter	SW2	N/A
»	IRQ15 select	SW3	open
	IRQ14 select	SW3	closed
»	17 sectors/track select	SW4	open
	32 sectors/track & 64 heads /cylinder select	SW4	closed
»	ISA compatible timing selected	SW5	open
	EISA compatible timing selected	SW5	closed
»	Factory configured - do not alter	SW6	N/A

MEMORY BASE ADDRESS SELECTION
Address		JP3	JP4
»	DC000h	closed	closed
	C8000h	open	open
	CC000h	closed	open
	D8000h	open	closed
