Data bus:	32-bit EISA
Size:	Three/quarter-length, full-height card
Hard drive supported:	Up to seven SCSI devices
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

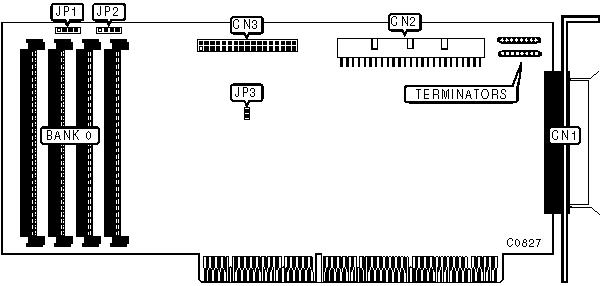

CONNECTIONS
Function	Location
50-pin SCSI-2 connector - external	CN1
50-pin SCSI connector - internal	CN2
34-pin control cable connector - floppy drive	CN3
4-pin connector - drive active LED	JP1
4-pin connector - speaker	JP2

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive enabled	JP3	closed
	Floppy drive disabled	JP3	open

DRMA CONFIGURATION TABLE
Size	Bank 0
1MB	(4) 256K x 9
4MB	(4) 1MB x 9
16MB	(4) 4MB x 9

MISCELLANEOUS TECHNICAL NOTES

Terminators must be removed only when both internal & external devices are connected to the host adapter.
