DC-390

TEKRAM TECHNOLOGY CO., LTD.

DC-390

Data Bus

32-bit PCI

Card Size

Half-length, half-height card

Hard Drives supported

Up to 7 Fast SCSI-2 devices

Floppy drives supported

None

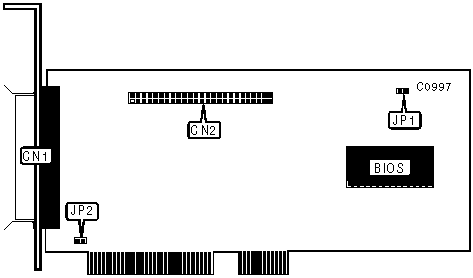

CONNECTIONS

Function

Location

Function

Location

50-pin SCSI connector - external

CN1

2-pin connector - drive active LED

JP1

50-pin SCSI connector - internal

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»
ROM BIOS enabled

JP2

Closed

»
ROM BIOS disabled

JP2

Open

Note: JP2 should be enabled if there is only one DC-390 in system. To save memory space when more

than one DC-390 is present, enable JP2 on one adapter and disable JP2 on the others.

Data Bus	32-bit PCI
Card Size	Half-length, half-height card
Hard Drives supported	Up to 7 Fast SCSI-2 devices
Floppy drives supported	None

CONNECTIONS
Function	Location	Function	Location
50-pin SCSI connector - external	CN1	2-pin connector - drive active LED	JP1
50-pin SCSI connector - internal	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	ROM BIOS enabled	JP2	Closed
»	ROM BIOS disabled	JP2	Open
Note: JP2 should be enabled if there is only one DC-390 in system. To save memory space when more than one DC-390 is present, enable JP2 on one adapter and disable JP2 on the others.
