SUNIX CO., LTD.
SUN-5249P (EX-3220)
|
Data Bus |
32-bit PCI |
|
Card Size |
Three-quarter length, full-height card |
|
Hard Drives supported |
Four IDE (AT) drives |
|
Floppy drives supported |
Two 360KB, 720KB, 1.2MB, 1.44MB or 2.88 MB drives |
|

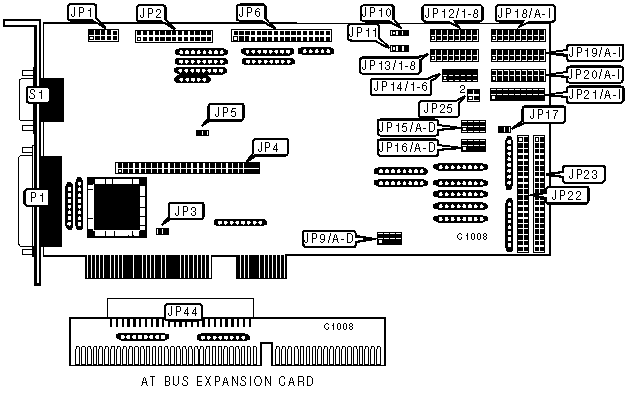

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
10-pin serial port 2 - internal |
JP1 |
40-pin IDE(AT) secondary connector |
JP22 |
|
26-pin parallel port 2 - internal |
JP2 |
40-pin IDE(AT) primary connector |
JP23 |
|
Proprietary expansion card connector |
JP4 |
25-pin parallel port 1 - external |
P1 |
|
2-pin connector - drive active LED |
JP5 |
9-pin serial port 1 - external |
S1 |
|
34-pin cable connector - floppy drive |
JP6 |
Proprietary expansion card connector |
JP44 |
|
2-pin connector - drive active LED |
JP17 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Floppy drive primary address select |
JP10 |
Pins 1 & 2 closed |
|
Floppy drive secondary address select |
JP10 |
Pins 3 & 4 closed | |
| » |
Floppy drive interface enabled |
JP11 |
Pins 1 & 2 closed |
|
Floppy drive interface disabled |
JP11 |
Pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
JP3 |
Open |
| » |
Factory configured - do not alter |
JP9/A |
Open |
| » |
Factory configured - do not alter |
JP9/B |
Closed |
| » |
Factory configured - do not alter |
JP9/C |
Open |
| » |
Factory configured - do not alter |
JP9/D |
Open |
|
SERIAL PORT 1 ADDRESS SELECTION | |||||||||
|
COM |
JP12/1 |
JP12/2 |
JP12/3 |
JP12/4 |
JP12/5 |
JP12/6 |
JP12/7 |
JP12/8 | |
| » |
COM1(3F8h) |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
COM2(2F8h) |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
COM3(3E8h) |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
COM4(2E8h) |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
COM5(3F0h) |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
COM6(3E0h) |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
COM7(2E0h) |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
COM8(260h) |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
SERIAL PORT 2 ADDRESS SELECTION | |||||||||
|
COM |
JP13/1 |
JP13/2 |
JP13/3 |
JP13/4 |
JP13/5 |
JP13/6 |
JP13/7 |
JP13/8 | |
|
COM1(3F8h) |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
COM2(2F8h) |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
COM3(3E8h) |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
COM4(2E8h) |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
COM5(3F0h) |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
COM6(3E0h) |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
COM7(2E0h) |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
COM8(260h) |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
PARALLEL PORT 1 ADDRESS SELECTION | |||||||
|
LPT |
JP14/1 |
JP14/2 |
JP14/3 |
JP14/4 |
JP14/5 |
JP14/6 | |
| » |
LPT1(3BCh) |
Closed |
Open |
Open |
Open |
Open |
Open |
|
LPT2(378h) |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
LPT3(278h) |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
LPT4(268h) |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
LPT5(27Ch) |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
LPT6(26Ch) |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
PARALLEL PORT 2 ADDRESS SELECTION | |||
|
LPT |
JP25/pins 1 & 2 |
JP25/pins 3 & 4 | |
|
LPT2(378h) |
Closed |
Open | |
| » |
LPT3(278h) |
Open |
Closed |
|
SERIAL PORT 1 INTERRUPT SELECTION | ||||||||||
|
IRQ |
JP18/A |
JP18/B |
JP18/C |
JP18/D |
JP18/E |
JP18/F |
JP18/G |
JP18/H |
JP18/I | |
|
IRQ3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
SERIAL PORT 2 INTERRUPT SELECTION | ||||||||||
|
IRQ |
JP19/A |
JP19/B |
JP19/C |
JP19/D |
JP19/E |
JP19/F |
JP19/G |
JP19/H |
JP19/I | |
| » |
IRQ3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
PARALLEL PORT 1 INTERRUPT SELECTION | ||||||||||
|
IRQ |
JP20/A |
JP20/B |
JP20/C |
JP20/D |
JP20/E |
JP20/F |
JP20/G |
JP20/H |
JP20/I | |
|
IRQ3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
PARALLEL PORT 2 INTERRUPT SELECTION | ||||||||||
|
IRQ |
J21/A |
J21/B |
J21/C |
J21/D |
J21/E |
J21/F |
J21/G |
J21/H |
J21/I | |
|
IRQ3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
PRIMARY IDE INTERRUPT SELECTION | |||||
|
Setting |
JP15/A |
JP15/B |
JP15/C |
JP15/D | |
| » |
INTA |
Closed |
Open |
Open |
Open |
|
INTB |
Open |
Closed |
Open |
Open | |
|
INTC |
Open |
Open |
Closed |
Open | |
|
INTD |
Open |
Open |
Open |
Closed | |
|
SECONDARY IDE INTERRUPT SELECTION | |||||
|
Setting |
JP16/A |
JP16/B |
JP16/C |
JP16/D | |
| » |
INTA |
Closed |
Open |
Open |
Open |
|
INTB |
Open |
Closed |
Open |
Open | |
|
INTC |
Open |
Open |
Closed |
Open | |
|
INTD |
Open |
Open |
Open |
Closed | |
