SIIG, INC.
i540/542 SPEEDMASTER
|
Data Bus |
16-bit ISA |
|
Card Size |
Full-height, half-length card |
|
Hard Drives supported |
Up to 7 SCSI-2 devices |
|
Floppy drives supported |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

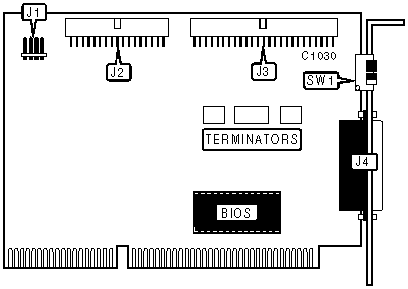

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
4-pin connector - drive active LED |
J1 |
50-pin SCSI connector - internal |
J3 |
|
34-pin cable connector - floppy drive |
J2 |
50-pin SCSI connector - external |
J4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Automatic port address increment function disabled |
SW1/1 |
Off |
|
Automatic port address increment function enabled |
SW1/1 |
On | |
| » |
Floppy controller is model i542 |
SW1/2 |
On |
|
Floppy controller is model i540 |
SW1/2 |
Off | |
| » |
Plug-and-Play enabled |
SW1/3 |
On |
|
Plug-and-Play disabled |
SW1/3 |
Off | |
| » |
Factory configured - do not alter |
SW1/4 |
N/A |
