STB SYSTEMS, INC.
GRAPHIX PLUS
|
Card Type |
Multi-I/O |
|
Video Processor |
Unidentified |
|
Maximum Onboard Memory |
32KB DRAM |
|
I/O Options |
SASI connector, clock/calendar, light pen port, parallel port, video port (3), RF modulator connector |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
Monochrome/CGA |
|
Highest Resolution Supported |
640 x 350 |
|
Hard Drives Supported |
Up to 7 SASI or SCSI devices |
|

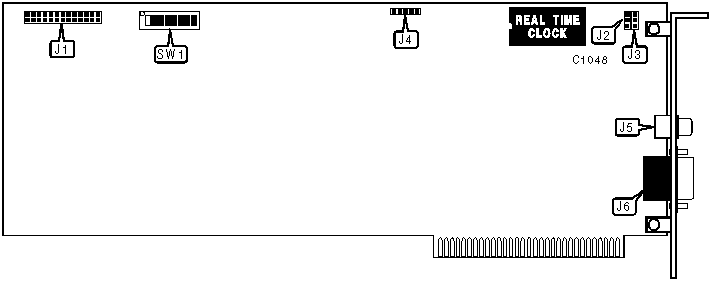

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Parallel or SASI port |
J1 |
Light pen port |
J4 |
|
Unidentified |
J2 |
Composite video out |
J5 |
|
1.5V AA battery connector |
J3 |
CGA/Monochrome video out |
J6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
J1 is a parallel port |
SW1/1 |
Off |
|
J1 is a SASI port |
SW1/1 |
On | |
| » |
Card acts as color display, parallel port address set to 278h |
SW1/2 |
On |
|
Card acts as monochrome display, parallel port address set to 3BCh |
SW1/2 |
Off | |
| » |
Blue signal sent to monochrome display |
SW1/6 |
On |
|
Blue not signal sent to monochrome display |
SW1/6 |
Off | |
| » |
Green signal sent to monochrome display |
SW1/7 |
On |
|
Green not signal sent to monochrome display |
SW1/7 |
Off | |
| » |
Red signal sent to monochrome display |
SW1/8 |
On |
|
Red not signal sent to monochrome display |
SW1/8 |
Off | |
|
MONITOR TYPE | ||||
|
Setting |
SW1/3 |
SW1/4 |
SW1/5 | |
| » |
Color monitor |
On |
On |
Off |
|
Monochrome monitor |
Off |
Off |
On | |
