Card Type	Hard drive controller card
Hard Drives supported	Up to 30 SCSI devices
Floppy drives supported	None
Data Bus	32-bit PCI
Card Size	Three-quarter length, full-height card

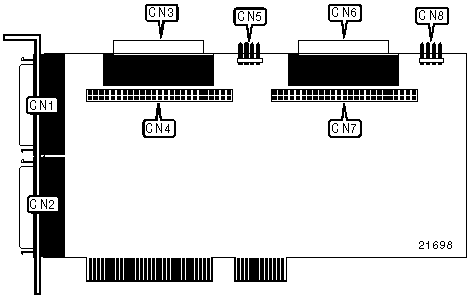

CONNECTIONS
Function	Location	Function	Location
68-pin SCSI connector - external	CN1	4-pin connector - drive active LED	CN5
68-pin SCSI connector - external	CN2	68-pin SCSI connector - internal	CN6
68-pin SCSI connector - internal	CN3	50-pin SCSI connector - internal	CN7
50-pin SCSI connector - internal	CN4	4-pin connector - drive active LED	CN8
