Card Type	Hard drive controller card
Hard Drives supported	Up to 7 SCSI devices
Floppy drives supported	None
Data Bus	32-bit PCI
Card Size	Half-length, half-height card

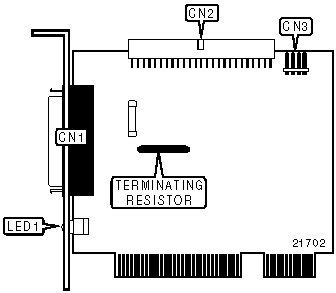

CONNECTIONS
Function	Location	Function	Location
50-pin SCSI connector - external	CN1	4-pin connector - drive active LED	CN3
50-pin SCSI connector - internal	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	Blinking	SCSI channel active
LED1	Unidentified	Off	SCSI channel idle
