ULTRASTOR CORPORATION
ULTRA22C
Data bus: 32 bit, EISA
Size: Full-length, half-height card
Hard drives supported: Two ESDI drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Maximum heads/cyl.: 16 heads and 1024 cylinders

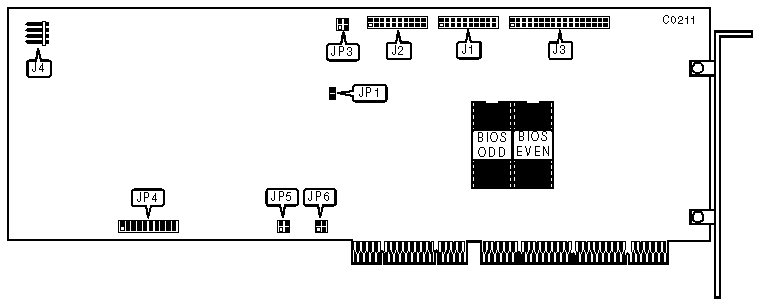

The two expansion board connectors (along the top and bottom) are not depicted in this illustration.
|
CONNECTIONS | |
|
Function |
Location |
|
20-pin data cable connector-drive 0 |
J1 |
|
20-pin data cable connector-drive 1 |
J2 |
|
34-pin control cable connector-hard drive |
J3 |
|
4-pin connector-drive active LED |
J4 |
|
FACTORY CONFIGURED SETTINGS ALL JUMPERS ON THE 22C ARE FOR FACTORY USE AND SHOULD REMAIN AT THE FACTORY DEFAULT SETTINGS. | |||
|
Function |
Location |
Setting | |
| » |
Factory configured - do not alter |
JP1 |
closed |
| » |
Factory configured - do not alter |
JP3 |
open |
| » |
Factory configured - do not alter |
JP4/jumper 1 |
closed |
| » |
Factory configured - do not alter |
JP4/jumpers 2 -5 |
open |
| » |
Factory configured - do not alter |
JP4/jumper 6 |
closed |
| » |
Factory configured - do not alter |
JP4/jumper 7 & 8 |
open |
| » |
Factory configured - do not alter |
JP4/jumper 9 |
closed |
| » |
Factory configured - do not alter |
JP4/jumper 10 |
open |
| » |
Factory configured - do not alter |
JP5/jumper 1 |
open |
| » |
Factory configured - do not alter |
JP5/jumper 2 |
closed |
| » |
Factory configured - do not alter |
JP6/jumper 1 |
open |
| » |
Factory configured - do not alter |
JP6/jumper 2 |
closed |
