IDE-4251AC
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two AT Interface (IDE) drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Maximum heads/cyl.: 8 heads and 1024 cylinders
|

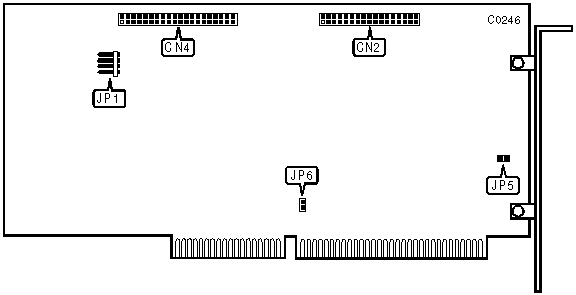

CONNECTIONS | |
|
Function |
Location |
|
34-pin data cable connector-floppy drive |
CN2 |
|
40-pin IDE Interface (AT) control cable connector-internal |
CN4 |
|
4-pin connector-drive active LED |
JP1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Floppy drive enabled |
JP5 |
closed |
|
Floppy drive disabled |
JP5 |
open | |
| » |
Hard drive enabled |
JP6 |
closed |
|
Hard drive disabled |
JP6 |
open | |
