VIVA COMPUTER COMPANY
H757AF
|
|
Data bus: 16-bit, ISA
Size: Half-length,half-height card
Hard drives supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
|

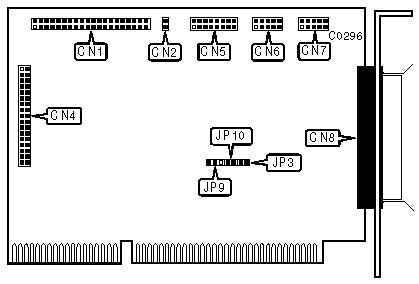

CONNECTIONS | |
|
Function |
Location |
|
34-pin data cable connector-floppy drive |
CN4 |
|
16-pin connector-game port |
CN5 |
|
10-pin serial port 2 connector-internal |
CN6 |
|
10-pin serial port 1 connector-internal |
CN7 |
|
DB-25 parallel port connector-external |
CN8 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Game port enabled |
JP3 |
closed |
|
Game port disabled |
JP3 |
open | |
| » |
Parallel port is an output device |
JP9 |
open |
|
Parallel port is an input device |
JP9 |
closed | |
| » |
Parallel port IRQ is IRQ7 |
JP10 |
pins 1 & 2 closed |
|
Parallel port IRQ is IRQ5 |
JP10 |
pins 2 & 3 closed | |
