UNIDENTIFIED
BI-030C
|
Q1 /93 |
Data bus: 16-bit, ISA
Size: Half-length, half-height card
Hard drives supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB or 1.44MB drives
|

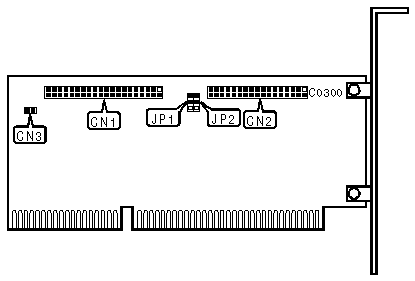

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE (AT) Interface connector |
CN1 |
|
34-pin data cable connector-floppy drives |
CN2 |
|
2-pin connector-drive active LED |
CN3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Hard drive controller enabled |
JP1 |
pins 2 & 3 closed |
|
Hard drive controller disabled |
JP1 |
pins 1 & 2 closed | |
| » |
Floppy drive controller enabled |
JP2 |
pins 2 & 3 closed |
|
Floppy drive controller disabled |
JP2 |
pins 1 & 2 closed | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
This controller has no on-board software. |
