Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE (AT) Interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

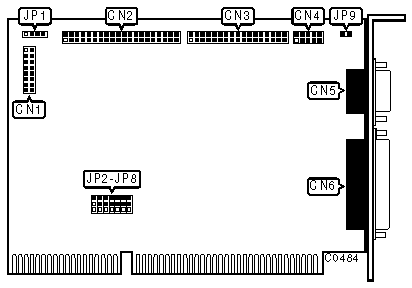

CONNECTIONS
Function	Location
15-pin game port - internal	CN1
40-pin IDE (AT) Interface connector	CN2
34-pin control cable connector - floppy drive	CN3
10-pin serial port (COM2/4) - internal	CN4
10-pin serial port (COM1/3) - internal	CN5
25-pin parallel port (LPT1/2) - external	CN6
4-pin connector - drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Serial Port 1 (CN5) enabled	JP2	pins 1 & 2 closed
	Serial Port 1 (CN5) disabled	JP2	pins 2 & 3 closed
»	Game Port (CN1) enabled	JP3	pins 1 & 2 closed
	Game Port (CN1) disabled	JP3	pins 2 & 3 closed
»	Floppy drive enabled	JP4	pins 1 & 2 closed
	Floppy drive disabled	JP4	pins 2 & 3 closed
»	Parallel Port (CN6) address is 378h (LPT1)	JP5	pins 1 & 2 closed
	Parallel Port (CN6) address is 278h (LPT2)	JP5	pins 2 & 3 closed
»	Serial Port 1 (CN5) is set to COM1 (3F8h)	JP6	pins 1 & 2 closed
	Serial Port 1 (CN5) is set to COM3 (3E8h)	JP6	pins 2 & 3 closed
»	Serial Port 2 (CN4) enabled	JP7	pins 1 & 2 closed
	Serial Port 2 (CN4) disabled	JP7	pins 2 & 3 closed
»	Serial Port 2 (CN4) is set to COM2 (2F8h)	JP8	pins 1 & 2 closed
	Serial Port 2 (CN4) is set to COM4 (2E8h)	JP8	pins 2 & 3 closed
»	I/O Channel Ready signal disabled	JP9	open
	I/O Channel Ready signal enabled	JP9	closed
