Data bus:	16-bit ISA
Size:	Three-quarter length, half-height card
Hard drive supported:	Two IDE(AT) interface drives
Floppy drives supported:	360KB, 720KB, 1.2MB, 1.44MB

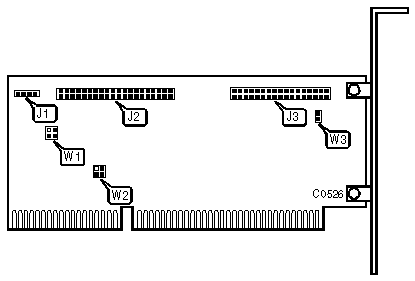

CONNECTIONS
Function	Location
4-pin connector - drive active LED	J1
40-pin IDE(AT) interface connector	J2
34-pin control cable connector - floppy drive	J3

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Unbuffered IRQ14 enabled	W1	pins 3 & 4 closed
	Buffered IRQ14 enabled	W1	pins 1 & 2 closed
»	Floppy drive interface enabled	W2	pins 1 & 2 closed
	Floppy drive interface disabled	W2	pins 1 & 2 open
»	Floppy drive interface is primary adapter	W2	pins 3 & 4 open
	Floppy drive interface is secondary adapter	W2	pins 3 & 4 closed
»	Single speed floppy drive interface enabled	W3	open
	Dual speed floppy drive interface enabled	W3	closed
