Data bus:	16-bit, ISA
Size:	Full-length, full-height card
Hard drive supported:	Up to seven SCSI devices
Floppy drives supported:	360KB, 720KB, 1.2MB or 1.44MB drives

CONNECTIONS

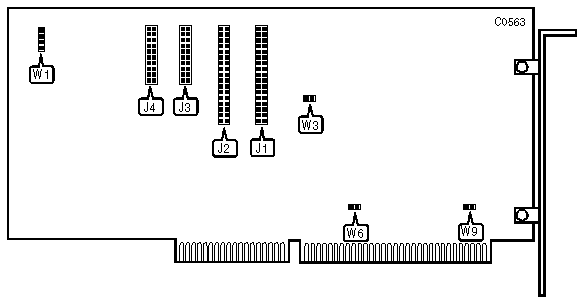

Function	Location
34-pin control cable connector - floppy drive	J1
34-pin control cable connector - hard drive	J2
20-pin data cable connector - drive 0	J3
20pin data cable connector - drive 1	J4
4-pin connector - drive active LED	W1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	1:1 interleave select	W3	closed
	Interleave software configured	W3	open
»	Floppy drive controller enabled	W6	closed
	Floppy drive controller disabled	W6	open
»	Primary I/O address select	W9	closed
	Alternate I/O address select	W9	open
