Data bus:	32-bit EISA
Size:	Three-quarter length, Full-height card
Hard drive supported:	Up to seven SCSI devices
Floppy drives supported:	None

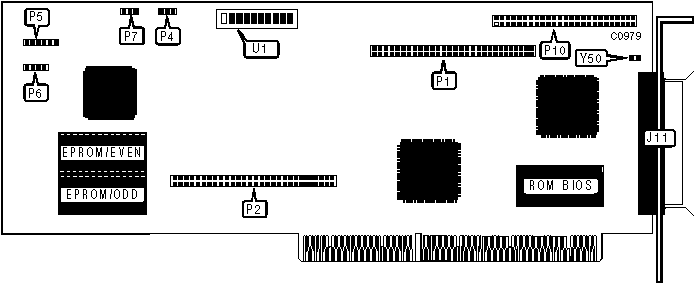

CONNECTIONS
Function	Location
50-pin SCSI interface - external	J11
10-piece LED	U1
Proprietary expansion connector	P1
Proprietary expansion connector	P2
6-pin expansion connector	P5
4-pin connector - drive active LED	P6
3-pin expansion connector	P7
50-pin SCSI interface - internal	P10

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory test button - do not alter	P4	N/A
»	Factory configured - do not alter	Y50	Closed

MISCELLANEOUS TECHNICAL NOTES

Note: LED configuration and expansion module diagrams are not available
