1210C (ASSY. 104866)
|
Data Bus |
8-bit ISA |
|
Card Size |
Half-length, full-height card |
|
Hard Drives supported |
Two ST-506/412(MFM) drives |
|
Floppy drives supported |
None |
|

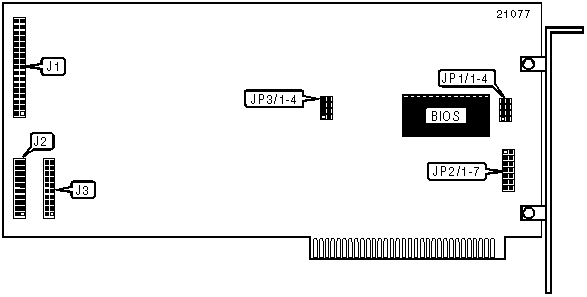

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
34-pin cable connector - hard drive |
J1 |
20-pin data cable connector - drive 2 |
J3 |
|
20-pin data cable connector - drive 1 |
J2 | ||
|
I/O ADDRESS SELECTION | |||||
|
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
JP1/4 | |
| » |
320h |
Closed |
Closed |
Closed |
Open |
|
Note: For IBM use, the above setting must be used. | |||||
|
INSTRUCTIONAL NOTES |
|
Note: To install XEBEC 1210c on your system, access the Drive Type Table that corresponds to your on-board BIOS and select your drive type. Set drive type jumpers JP3/1-JP3/4 as indicated and use the ROM address to access the BIOS Address Selection Table. JP2/1-JP2/7 jumpers should be set according to this table. Note: Drives with IBM or Xebec formats use DOS FDISK.COM to set up partitions and DOS FORMAT.COM to initialize directories & create boot tracks. To format drives with no low level format, run IBM’s adv. Diag. Program option 17 or a Menu Program accessible through DOS DEBUG.COM (available for BIOS types 104959 and 102168). If DEBUG.COM is selected, use drive type characteristics to select a ROM address from the tables. Set JP2 to reflect this address and at the hyphen prompt, enter "-g= ‘ROM address’" |
|
DRIVE TYPE SELECTION FOR BIOS 104959/102168 | ||||||
|
Manufacturer and Drive |
Heads/Cyl/Sz/Servo/Split |
ROM Addr |
JP3/1 |
JP3/2 |
JP3/3 |
JP3/4 |
|
Fujitsu M2233as Mini MS1012 Mini MS2012 Mini MS3412 NEC 5124 |
4/306/10mb/NonEmb/- |
C800:5 |
Closed |
Closed |
Closed |
Closed |
|
Rodime RO202 Seagate ST412 Shugart SA612 Tandon TM252 Tandon TM502 |
|
or CE00:5 | ||||
|
Mini MS3212 Mini MS8212 Rodime RO201e Seagate ST212 |
2/612/10mb/NonEmb/- |
C800:5
|
Open |
Closed |
Open |
Closed |
|
CDC 9415-5-25 CMI CM4326 CMI CM6426(s) Microsc. HM725 Miniscribe MS3425 Miniscribe MS8425 NEC 5126 NEC 3126 |
4/612/20mb/Embed/- |
C800:5 |
Closed |
Open |
Closed |
Open |
|
Rodime RO202e Seagate ST225 Seagate ST4026 Syquest SQ325f Tandon TM262 Tandon TM702at Tulin TL1226 |
CE00:5 |
Open |
Closed |
Open |
Closed | |
|
NEC 5146 |
8/612/40mb/Embed/- |
C800:5 |
Open |
Open |
Open |
Open |
|
Rodime RO204e |
8/612/40mb/Embed/1/4,3/4 |
CA00:5 |
Closed |
Open |
Closed |
Open |
|
8/612/40mb/Embed/1/2,1/2 |
CA00:5 |
Open |
Open |
Open |
Open | |
|
IBM XT 20 MEG Drive |
8/206/20mb/Embed/None |
CA00:5 |
Closed |
Closed |
Closed |
Closed |
|
Quantum Q540 |
8/512/40mb/Embed/None |
CA00:5 |
Open |
Closed |
Open |
Closed |
|
CDC 94155-48 |
5/732/32mb/NonEmb/- |
CC00:5 |
Closed |
Closed |
Closed |
Closed |
|
Seagate 4096 |
9/1024/80mb/NonEmb/- |
CC00:5 |
Open |
Open |
Open |
Open |
|
Seagate 4051 |
5/977/42mb/Embed/- |
CC00:5 |
Open |
Closed |
Open |
Closed |
|
Seagate 251 |
6/820/43mb/NonEmb/- |
CC00:5 |
Closed |
Open |
Closed |
Open |
|
Note: JP3/1 and JP3/2 define the first hard drive. JP3/3 and JP3/4 define the second hard drive. | ||||||
|
DRIVE TYPE SELECTION FOR BIOS 104959/102168 | ||||||
|
Manufacturer and Drive |
Heads/Cyl/Sz/Servo/Split |
ROM Addr |
JP3/1 |
JP3/2 |
JP3/3 |
JP3/4 |
|
Fujitsu M2233as Mini MS1012 Mini MS2012 Mini MS3412 NEC 5124 Rodime RO202 Seagate ST412 Shugart SA612 Tandon TM252 Tandon TM502 |
4/306/10mb/NonEmb/- |
C800:5 or CE00:5 |
Closed |
Closed |
Closed |
Closed |
|
Syquest SQ312rd |
2/612/10mb/Remov/- |
CE00:5 |
Closed |
Open |
Closed |
Open |
|
DMA 360 Richo 5130 |
2/612/10mb/Remov/- |
CE00:5 |
Open |
Open |
Open |
Open |
|
Note: JP3/1 and JP3/2 define the first hard drive. JP3/3 and JP3/4 define the second hard drive. | ||||||
|
DRIVE TYPE SELECTION FOR BIOS OTHER THAN 104959/102168 | |||||
|
BIOS |
Heads/Cyl/Size |
JP3/1 |
JP3/2 |
JP3/3 |
JP3/4 |
|
9/917/70mb |
Closed |
Closed |
Closed |
Closed | |
|
104873 |
4/306/10mb |
Closed |
Open |
Closed |
Open |
|
2/612/10mb |
Open |
Closed |
Open |
Closed | |
|
4/612/20mb |
Open- |
Open |
Open |
Open | |
|
4/ 306/10mb |
Closed |
Closed |
Closed |
Closed | |
|
106610 |
4/612/20mb |
Closed |
Open |
Closed |
Open |
|
9/ 917/70mb |
Open |
Closed |
Open |
Closed | |
|
2/612/10mb |
Open- |
Open |
Open |
Open | |
|
BIOS ADDRESS SELECTION | ||||||||
|
BIOS Type |
ROM Address
|
JP2/1 |
JP2/2 |
JP2/3 |
JP2/4 |
JP2/5 |
JP2/6 |
JP2/7 |
|
C800:5 |
Open |
Open |
Closed |
Closed |
Open |
Closed |
Closed | |
|
104959/ |
CA00:5 |
Open |
Open |
Closed |
Closed |
Open |
Closed |
Open |
|
102168 |
CC00:5 |
Open |
Open |
Closed |
Closed |
Open |
Open |
Closed |
|
CE00:5 |
Open |
Open |
Closed |
Closed |
Open |
Open |
Open | |
|
Other |
C8000 |
Open |
Open |
Closed |
Closed |
Open |
Closed |
Closed |
|
Note: The ‘ROM Address’ in this table must match the ‘ROM Addr’ selected in the Drive Type Selection Table. | ||||||||
|
MISCELLANEOUS TECHNICAL NOTE |
|
Contact manufacturer for information on drive type supported by BIOS chips not listed in this document. |
