Data Bus	16-bit ISA
Card Size	Half-length, half-height card
Hard Drives supported	Two IDE (AT) drives
Floppy drives supported	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

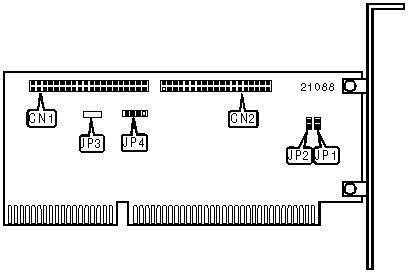

CONNECTIONS
Function	Location	Function	Location
40-pin IDE (AT) Interface connector-internal	CN1	2-pin connector - drive active LED	JP4
38-pin cable connector-floppy drive	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
	UM8388 controller is primary in system	JP1	Open
	UM8388 controller is secondary in system	JP1	Closed
»	Factory configured - floppy drive address on/off	JP2	Unidentified
»	Factory configured - I/O channel ready	JP3	Unidentified
