UNIDENTIFIED

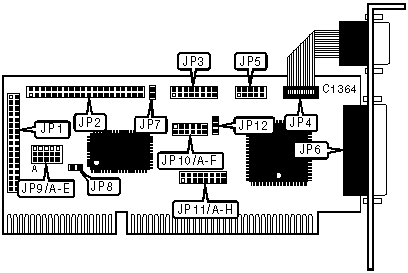

V-606 SUPER I/O, W-606 SUPER I/O CARD
|
Chipset |
Winbond |
|
Data Bus |
16-bit ISA |
|
Card Size |
Half height, half length |
|
Hard Drives Supported |
Two IDE(AT) devices |
|
Floppy Drives Supported |
Unidentified |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
34-pin cable connector - floppy drive |
JP1 |
10-pin serial port 2 - internal |
JP5 |
|
40-pin IDE(AT) connector |
JP2 |
25-pin parallel port - external |
JP6 |
|
16-pin game port |
JP3 |
2-pin drive active LED |
JP7 |
|
9-pin serial port 1 - external |
JP4 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Parallel port is unidirectional |
JP8 |
Closed |
|
Parallel port is bidirectional |
JP8 |
Open | |
| » |
Floppy drive order is normal (A:, B:) |
JP9/A |
Pins 2 & 3 closed |
|
Floppy drive order is reversed (B:, A:) |
JP9/A |
Pins 1 & 2 closed | |
| » |
Floppy address is 3F0h |
JP9/B |
Pins 1 & 2 closed |
|
Floppy address is 370h |
JP9/B |
Pins 2 & 3 closed | |
| » |
IDE(AT) interface enabled |
JP9/C |
Pins 2 & 3 closed |
|
IDE(AT) interface disabled |
JP9/C |
Pins 1 & 2 closed | |
| » |
IDE(AT) address is 3F6h |
JP9/D |
Pins 1 & 2 closed |
|
IDE(AT) address is 376h |
JP9/D |
Pins 2 & 3 closed | |
| » |
Floppy interface enabled |
JP9/E |
Pins 2 & 3 closed |
|
Floppy interface disabled |
JP9/E |
Pins 1 & 2 closed | |
| » |
Game port enabled |
JP12 |
Pins 1 & 2 closed |
|
Game port disabled |
JP12 |
Pins 2 & 3 closed | |
|
SERIAL PORT 1 ADDRESS SELECTION | |||
|
Setting |
JP10/A |
JP10/B | |
| » |
3F8h (COM1:) |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
3E8h (COM3:) |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
|
2E8h (COM4:) |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
Disabled |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
SERIAL PORT 2 ADDRESS SELECTION | |||
|
Setting |
JP10/C |
JP10/D | |
| » |
2F8h (COM2:) |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
3E8h (COM3:) |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
2E8h (COM4:) |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
|
Disabled |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
PARALLEL PORT ADDRESS SELECTION | |||
|
Setting |
JP10/E |
JP10/F | |
| » |
378h |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
278h |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
|
3BCh |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
Disabled |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
SERIAL PORT 1 INTERRUPT SELECTION | ||||
|
Setting |
JP11/A |
JP11/B |
JP11/C | |
|
IRQ3 |
Open |
Closed |
Open | |
| » |
IRQ4 |
Closed |
Open |
Open |
|
IRQ5 |
Open |
Open |
Closed | |
|
SERIAL PORT 2 INTERRUPT SELECTION | ||||
|
Setting |
JP11/D |
JP11/E |
JP11/F | |
| » |
IRQ3 |
Closed |
Open |
Open |
|
IRQ4 |
Open |
Closed |
Open | |
|
IRQ5 |
Open |
Open |
Closed | |
|
PARALLEL PORT INTERRUPT SELECTION | |||
|
Setting |
JP11/G |
JP11/H | |
|
IRQ5 |
Open |
Closed | |
| » |
IRQ7 |
Closed |
Open |
