Card Type	I/O controller
Chipset/Controller	UART
I/O Options	Serial ports (6)
Maximum DRAM	N/A

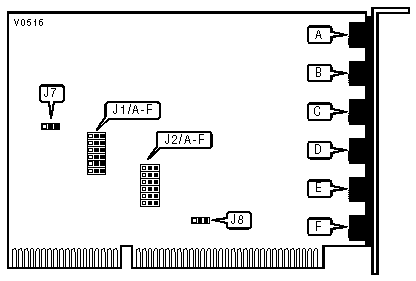

CONNECTIONS
Purpose	Location	Purpose	Location
RJ45 serial port 1	A	RJ45 serial port 4	D
RJ45 serial port 2	B	RJ45 serial port 5	E
RJ45 serial port 3	C	RJ45 serial port 6	F

I/O ADDRESS CONFIGURATION
Port/Address		J1/A	J1/B	J1/C	J1/D	J1/E	J1/F
»	Port 1/220h	2 & 3 closed	N/A	N/A	N/A	N/A	N/A
	Port 1/3F8h	1 & 2 closed	N/A	N/A	N/A	N/A	N/A
»	Port 2/228h	N/A	2 & 3 closed	N/A	N/A	N/A	N/A
	Port 2/2F8h	N/A	1 & 2 closed	N/A	N/A	N/A	N/A
»	Port 3/240h	N/A	N/A	2 & 3 closed	N/A	N/A	N/A
	Port 3/3E8h	N/A	N/A	1 & 2 closed	N/A	N/A	N/A
»	Port 4/248h	N/A	N/A	N/A	2 & 3 closed	N/A	N/A
	Port 4/2E8h	N/A	N/A	N/A	1 & 2 closed	N/A	N/A
»	Port 5/260h	N/A	N/A	N/A	N/A	2 & 3 closed	N/A
	Port 5/3E0h	N/A	N/A	N/A	N/A	1 & 2 closed	N/A
»	Port 6/268h	N/A	N/A	N/A	N/A	N/A	2 & 3 closed
	Port 6/2E0h	N/A	N/A	N/A	N/A	N/A	1 & 2 closed

INTERRUPT REQUEST
Port/IRQ		J2/A	J2/B	J2/C	J2/D	J2/E	J2/F
»	Port 1/IRQ4	1 & 2 closed	N/A	N/A	N/A	N/A	N/A
	Port 1/shared	2 & 3 closed	N/A	N/A	N/A	N/A	N/A
»	Port 2/IRQ3	N/A	1 & 2 closed	N/A	N/A	N/A	N/A
	Port 2/shared	N/A	2 & 3 closed	N/A	N/A	N/A	N/A
»	Port 3/IRQ10	N/A	N/A	1 & 2 closed	N/A	N/A	N/A
	Port 3/shared	N/A	N/A	2 & 3 closed	N/A	N/A	N/A
»	Port 4/IRQ11	N/A	N/A	N/A	1 & 2 closed	N/A	N/A
	Port 4/shared	N/A	N/A	N/A	2 & 3 closed	N/A	N/A
»	Port 5/IRQ12	N/A	N/A	N/A	N/A	1 & 2 closed	N/A
	Port 5/shared	N/A	N/A	N/A	N/A	2 & 3 closed	N/A
»	Port 6/IRQ15	N/A	N/A	N/A	N/A	N/A	1 & 2 closed
	Port 6/shared	N/A	N/A	N/A	N/A	N/A	2 & 3 closed

INTERRUPT STATUS REGISTER I/O
Address		J7
»	208h	Pins 1 & 2 closed
	2F0h	Pins 2 & 3 closed

SHARED IRQ
Shared IRQ		J7
»	IRQ5	Pins 2 & 3 closed
	IRQ4	Pins 1 & 2 closed
