Card Type	Serial
Processor	80386SX
Processor Speed	25MHz
Chip Set	Zilog/AMD
Maximum Onboard Memory	5MB RAM
I/O Options	Serial ports (4)
Data Bus	16-bit ISA

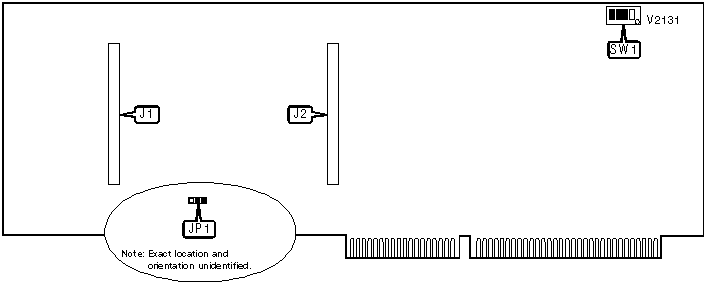

CONNECTIONS
Function	Label	Function	Label
Four-port daughterboard header	J1	Two-port daughterboard header	J2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Fast Select enabled	JP1	Pins 2 & 3 closed
	Fast Select disabled	JP1	Pins 1 & 2 closed

BASE I/O ADDRESS
Setting		SW1/1	SW1/2	SW1/3	SW1/4
	03Ch	On	On	On	On
	07Ch	On	On	On	Off
	0BCh	On	On	Off	On
	0FCh	On	On	Off	Off
	13Ch	On	Off	On	On
	17Ch	On	Off	On	Off
	1BCh	On	Off	Off	On
	1FCh	On	Off	Off	Off
	23Ch	Off	On	On	On
	27Ch	Off	On	On	Off
	2BCh	Off	On	Off	On
	2FCh	Off	On	Off	Off
»	33Ch	Off	Off	On	On
	37Ch	Off	Off	On	Off
	3BCh	Off	Off	Off	On
	3FCh	Off	Off	Off	Off

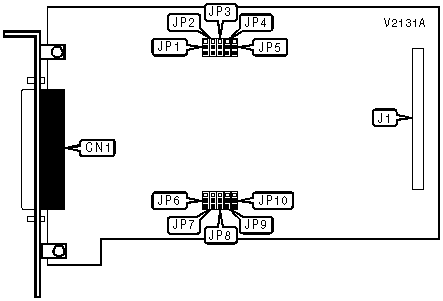

CONNECTIONS
Function	Label	Function	Label
V.35 or V.24 serial ports via DB-37	CN1	Daughterboard header	J1
Note: Serial ports are provided via included adapter cable.

PORT 1 TYPE
Setting	JP1	JP2	JP3	JP4	JP5
V.35	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
V.24	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated are in the closed position.

PORT 2 TYPE
Setting	JP6	JP7	JP8	JP9	JP10
V.35	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
V.24	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated are in the closed position.

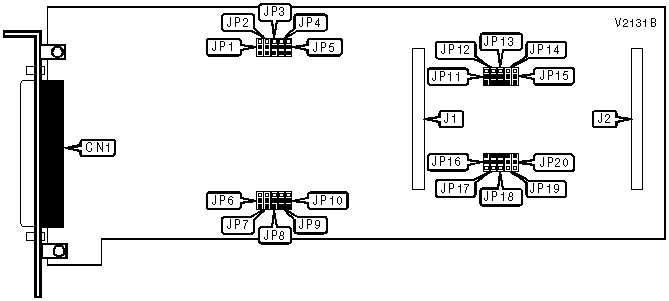

CONNECTIONS
Function	Label	Function	Label
V.35 or V.24 serial ports via DB-62	CN1	Daughterboard header	J2
Daughterboard header	J1
Note: Serial ports are provided via included adapter cable.

PORT 1 TYPE
Setting	JP1	JP2	JP3	JP4	JP5
V.35	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
V.24	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated are in the closed position.

PORT 2 TYPE
Setting	JP6	JP7	JP8	JP9	JP10
V.35	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
V.24	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated are in the closed position.

PORT 3 TYPE
Setting	JP11	JP12	JP13	JP14	JP15
V.35	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
V.24	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated are in the closed position.

PORT 4 TYPE
Setting	JP16	JP17	JP18	JP19	JP20
V.35	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
V.24	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated are in the closed position.

CONNECTIONS
Function	Label	Function	Label
X.21 serial ports via DB-44	CN1	Daughterboard header	J1
Note: Serial ports are provided via included adapter cable.
