ASUS COMPUTER INTERNATIONAL
I-A16C
|
Card Type |
Sound card |
|
Chip Set Maximum onboard memory |
Creative Labs Unidentified |
|
I/O Options |
Audio in - CD-ROM (3), line in, line out, speaker out, wavetable connector, microphone in, PC speaker in/out, game/MIDI port, volume control |
|
Data Bus |
16-bit ISA |
|

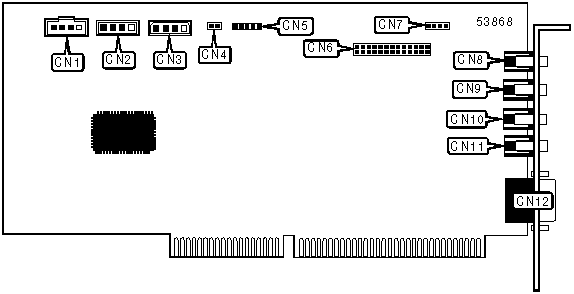

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Audio in - CD-ROM (Sony) |
CN1 |
PC speaker out |
CN7 |
|
Audio in - CD-ROM (Mitsumi) |
CN2 |
Speaker out |
CN8 |
|
Audio in - CD-ROM (Panasonic) |
CN3 |
Line out |
CN9 |
|
PC speaker in |
CN4 |
Line in |
CN10 |
|
Volume control |
CN5 |
Microphone in |
CN11 |
|
Wavetable connector |
CN6 |
Game/MIDI port |
CN12 |
