Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Speaker out, antenna in
Data Bus	8-bit ISA

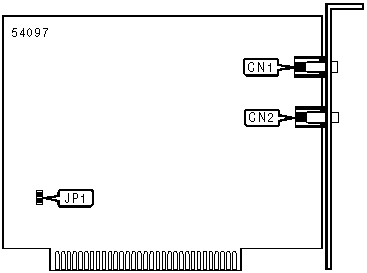

CONNECTIONS
Function	Label	Function	Label
Antenna in	CN1	Speaker out	CN2

BASE I/O ADDRESS SELECTION
Setting		JP1
»	30Ch-30Fh	Open
	20Ch-20Fh	Closed
