BEST UNION ELECTRONICS CO., LTD.
COMPUS SOUNDWAVE
|
Card Type |
Sound card |
|
Chip Set |
Yamaha |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Game/MIDI port, wavetable connector, audio in - CD-ROM(2), line in, line out, microphone in, speaker out |
|
Data Bus |
16-bit ISA |
|
Card Size |
Three-quarter length, Full-height card |
|

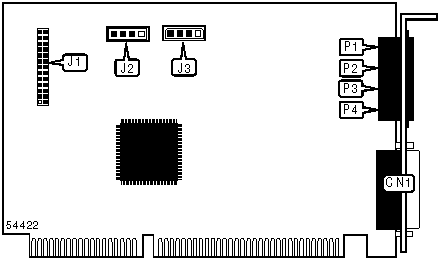

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Game/MIDI port |
CN1 |
Microphone in |
P1 |
|
Wavetable connector |
J1 |
Line in |
P2 |
|
Audio in CD-ROM (Mitsumi) |
J2 |
Line out |
P3 |
|
Audio in CD-ROM (Panasonic) |
J3 |
Speaker out |
P4 |
