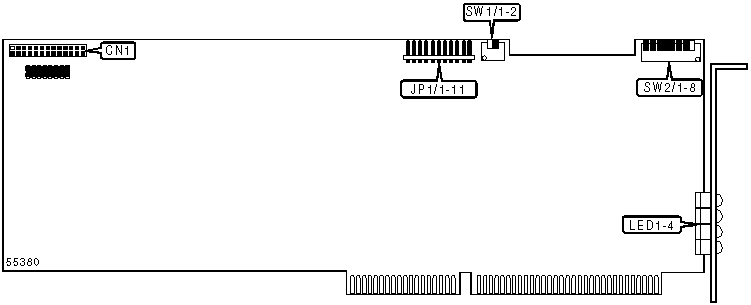

BROOKTROUT TECHNOLOGY, INC.
TR114+I4P
|
 Card Type  |
 Digital I/O card  |
|
 Maximum Onboard Memory  |
 2MB  |
|
 Data Bus  |
 16-bit ISA  |
|
 CONNECTIONS  | |
|
 Function  |
 Label  |
|
 PEB connector  |
 CN1  |
|
 USER CONFIGURABLE SETTINGS  | ||
|
 Function  |
 Label  |
 Position  |
|
 Card is first or only card in system  |
 SW2/1  |
 On  |
|
 Card is not first in a multiple card system  |
 SW2/1  |
 Off  |
|
 BASE I/O ADDRESS SELECTION  | |||||||
|
 Setting  |
 SW2/2  |
 SW2/3  |
 SW2/4  |
 SW2/5  |
 SW2/6  |
 SW2/7  |
 SW2/8  |
|
 100h  |
 On  |
 On  |
 On  |
 On  |
 On  |
 Off  |
 On  |
|
 108h  |
 On  |
 On  |
 On  |
 Off  |
 On  |
 Off  |
 On  |
|
 110h  |
 On  |
 On  |
 On  |
 On  |
 Off  |
 Off  |
 On  |
|
 118h  |
 On  |
 On  |
 On  |
 On  |
 On  |
 On  |
 Off  |
|
 120h  |
 On  |
 On  |
 Off  |
 On  |
 On  |
 On  |
 Off  |
|
 260h  |
 On  |
 On  |
 Off  |
 Off  |
 On  |
 On  |
 Off  |
|
 3D8h  |
 Off  |
 Off  |
 Off  |
 Off  |
 On  |
 On  |
 Off  |
|
 3E0h  |
 Off  |
 Off  |
 Off  |
 Off  |
 Off  |
 On  |
 On  |
|
 3E8h  |
 Off  |
 Off  |
 Off  |
 Off  |
 Off  |
 On  |
 Off  |
|
 3F0h  |
 Off  |
 Off  |
 Off  |
 Off  |
 Off  |
 Off  |
 On  |
|
 3F8h  |
 Off  |
 Off  |
 Off  |
 Off  |
 Off  |
 Off  |
 Off  |
|
 Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: SW1/8=32768, SW1/7=16384, SW1/6=8192, SW1/5=4096, SW1/4=2048, SW1/3=1024, SW1/2=512, SW1/1=256. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=1, On=0)  | |||||||
|
 INTERRUPT SELECTION  | |
|
 IRQ  |
 JP1  |
|
 3  |
 Pins 1 & 2 closed  |
|
 4  |
 Pins 3 & 4 closed  |
|
 5  |
 Pins 5 & 6 closed  |
|
 6  |
 Pins 7 & 8 closed  |
|
 7  |
 Pins 9 & 10 closed  |
|
 9  |
 Pins 11 & 12 closed  |
|
 10  |
 Pins 13 & 14 closed  |
|
 11  |
 Pins 15 & 16 closed  |
|
 12  |
 Pins 17 & 18 closed  |
|
 14  |
 Pins 19 & 20 closed  |
|
 15  |
 Pins 21 & 22 closed  |
|
 DIAGNOSTIC LED(S)  | |||
|
 LED  |
 Color  |
 Status  |
 Condition  |
|
 LED1  |
 Red  |
 Blinking  |
 Data is being transmitted on the channel 1  |
|
 LED1  |
 Red  |
 Blinking (fast)  |
 Channel 1 is off hook  |
|
 LED2  |
 Red  |
 Blinking  |
 Data is being transmitted on the channel 2  |
|
 LED2  |
 Red  |
 Blinking (fast)  |
 Channel 2 is off hook  |
|
 LED3  |
 Red  |
 Blinking  |
 Data is being transmitted on the channel 3  |
|
 LED3  |
 Red  |
 Blinking (fast)  |
 Channel 3 is off hook  |
|
 LED4  |
 Red  |
 Blinking  |
 Data is being transmitted on the channel 4  |
|
 LED4  |
 Red  |
 Blinking (fast)  |
 Channel 4 is off hook  |
|
 MVIP CLOCK TERMINATION  | ||
|
 Setting  |
 SW1/1  |
 SW1/2  |
|
 Terminated  |
 On  |
 On  |
|
 Not terminated  |
 Off  |
 Off  |
