Category	Video
Video Types Supported	XVGA
Video Processor	Weitek 9000
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit VESA Local Bus
Memory Type	VRAM
Maximum Onboard Memory	2048KB

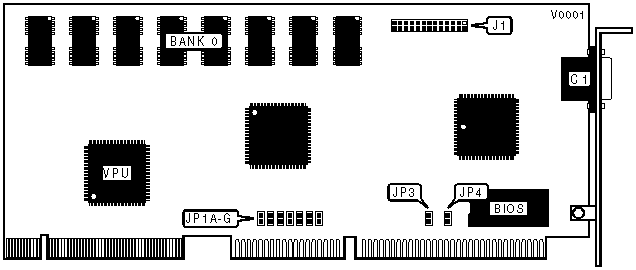

CONNECTIONS
Purpose	Location	Purpose	Location
15 pin analog video port	C1	VESA Feature connector	J1

BIOS MEMORY CONFIGURATION
Address		JP1/A	JP1/B
»	C000h	Closed	Closed
	D000h	Closed	Open
	E000h	Open	Closed
	F000h	Open	Open
Note: If VGA card is used in a system with a Weitek 4167 or 3167 math co-processor installed, memory location C000h cannot be selected.

DISPLAY MEMORY FRAME BUFFER
Address Width		JP1/C	JP1/G
»	16-bit memory access	Open	Closed
	8-bit memory access	Closed	Open

VIDEO INTERRUPT SELECTION
IRQ 2/9		JP1/D
»	Disabled	Open
	Enabled	Closed

WAIT STATE SELECTION
Zero Wait State		JP1/E
»	Disabled	Open
	Enabled	Closed

BIOS ROM ACCESS CONFIGURATION
Address Width		JP1/F
»	16-bit BIOS ROM access	Open
	8-bit BIOS ROM access	Closed

SECONDARY VGA CARD CONFIGURATON
Secondary VGA Card	JP3	JP4
Absent	Closed	Open
Installed	Open	Closed

MISCELLANEOUS TECHNICAL NOTE

Note:In order to configure resolution and scan rates, the utility software included with the card must be run.
