Card Type	Sound Card
Chipset/Controller	Creative Technology
I/O Options	CD-ROM interface game/MIDI port, line in, microphone jack, speaker, volume control
Maximum DRAM	N/A

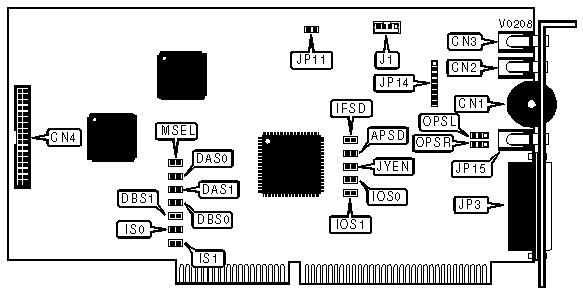

CONNECTIONS
Purpose	Location	Purpose	Location
Volume control	CN1	Game/MIDI port	JP3
Microphone jack	CN2	PC speaker connector	JP11
Line in	CN3	Audio extension	JP14
CD-ROM interface connector	CN4	Speaker jack	JP15
CD audio cable connector	J1

I/O ADDRESS CONFIGURATION
Address		I0S0	I0S1
»	220h	Closed	Closed
	240h	Open	Closed
	260h	Closed	Open
	280h	Open	Open

BASE I/O ADDRESS SELECTION
Address		MSEL
»	330h	Closed
	300h	Open

INTERRUPT CONFIGURATION
IRQ		IS0	IS1
»	5	Open	Closed
	2	Closed	Closed
	7	Closed	Open
	10	Open	Open

8-BIT DMA CHANNEL SELECTION
Channel		DAS0	DAS1
»	1	Open	Closed
	0	Closed	Closed
	3	Closed	Open

16-BIT DMA CHANNEL SELECTION
Channel		DBS0	DBS1
»	5	Closed	Closed
	6	Open	Closed
	7	Closed	Open

GAME PORT CONFIGURATION
Setting		JYEN
»	Enabled	Closed
	Disabled	Open

AUDIO OUTPUT AMPLIFIER SELECTION
Setting		OPSL	OPSR
»	Internal amplifier	Pins 2 & 3 closed	Pins 2 & 3 closed
	External amplifier	Pins 1 & 2 closed	Pins 1 & 2 closed

ADVANCED SIGNAL PROCESSOR UPGRADE CHIP CONFIGURATION
Setting		IFSD	APSD
»	Not installed	Closed	Closed
	Installed	Open	Open
