DIGI INTERNATIONAL, INC.
EISA C/X (VERSION 1)
|
Card Type |
Serial controller |
|
Chipset/Controller |
Unidentified UART |
|
I/O Options |
Serial ports (2) |
|
Maximum DRAM |
1MB dual ported RAM |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
CN1 |
Serial port 2 |
CN2 |
|
Note:CN1 & CN2 are RS-422 ports which attach to serial concentrators. | |||
|

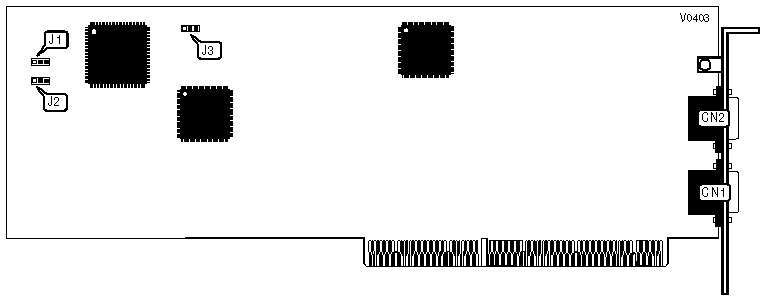

FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
J1 |
Pins 1 & 2 closed |
|
J2 |
Pins 1 & 2 closed |
|
J3 |
Pins 1 & 2 closed |
