Card Type	Serial controller
Chipset/Controller	Comtrol
I/O Options	Serial port
Maximum DRAM	N/A

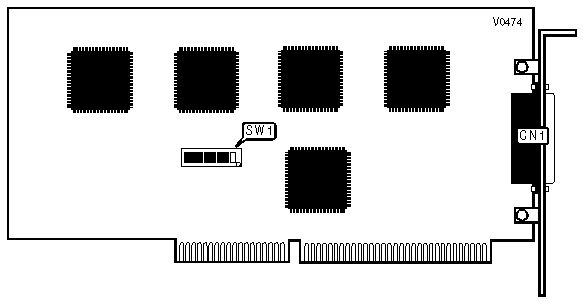

CONNECTIONS
Purpose	Location
Serial port 1	CN1

CARD 1 ADDRESS SELECT
Address	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
100 - 143h	Off	On	Off	On	On	On	On	On
140 - 183h	On	Off	Off	On	On	On	On	On
180 - 1C3h	Off	Off	Off	On	On	On	On	On
200 - 243h	Off	On	On	Off	On	On	On	On
280 - 2C3h	Off	Off	On	Off	On	On	On	On
300 - 343H	Off	On	Off	Off	On	On	On	On

CARD 2 ADDRESS SELECT
Address	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
100 - 143h	Off	On	Off	On	Off	On	On	On
140 - 183h	On	Off	Off	On	Off	On	On	On
180 - 1C3h	Off	Off	Off	On	Off	On	On	On
200 - 243h	Off	On	On	Off	Off	On	On	On
280 - 2C3h	Off	Off	On	Off	Off	On	On	On
300 - 343H	Off	On	Off	Off	Off	On	On	On

CARD 3 ADDRESS SELECT
Address	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
100 - 143h	Off	On	Off	On	On	Off	On	On
140 - 183h	On	Off	Off	On	On	Off	On	On
180 - 1C3h	Off	Off	Off	On	On	Off	On	On
200 - 243h	Off	On	On	Off	On	Off	On	On
280 - 2C3h	Off	Off	On	Off	On	Off	On	On
300 - 343H	Off	On	Off	Off	On	Off	On	On

CARD 4 ADDRESS SELECT
Address	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
100 - 143h	Off	On	Off	On	Off	Off	On	On
140 - 183h	On	Off	Off	On	Off	Off	On	On
180 - 1C3h	Off	Off	Off	On	Off	Off	On	On
200 - 243h	Off	On	On	Off	Off	Off	On	On
280 - 2C3h	Off	Off	On	Off	Off	Off	On	On
300 - 343H	Off	On	Off	Off	Off	Off	On	On
