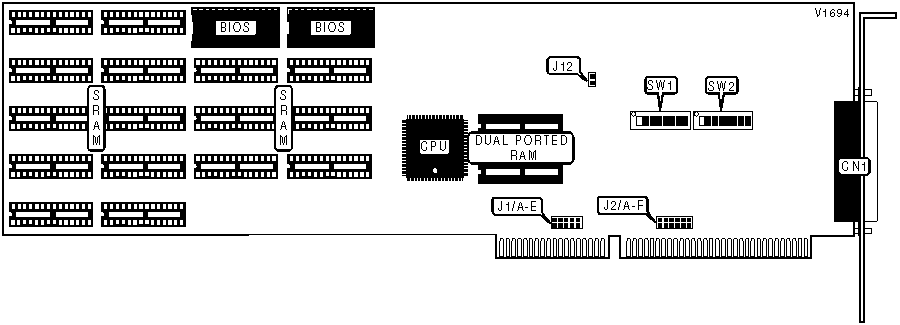

CONNECT TECH, INC.
INTELLICON-NT960
|
Card Type |
Serial card |
|
Chip Set |
Intel 80960 RISC |
|
Maximum Onboard Memory |
2MB SRAM/256KB Dual Ported RAM |
|
I/O Options |
Serial ports (128 on external modules) |
|
Data Bus |
16-bit ISA |
|
CONNECTIONS | |
|
Function |
Label |
|
37-pin serial port connector |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
8-bit data transfer mode enabled |
J12 |
Open |
|
16-bit data transfer mode enabled |
J12 |
Closed | |
| » |
Factory configured - do not alter |
SW2/6 |
On |
| » |
Factory configured - do not alter |
SW2/7 |
On |
| » |
Factory configured - do not alter |
SW2/8 |
On |
|
I/O ADDRESS SELECTION | |||||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
| » |
300h |
On |
On |
On |
On |
On |
On |
Off |
Off |
|
100h |
On |
On |
On |
On |
On |
On |
Off |
On | |
|
104h |
Off |
On |
On |
On |
On |
On |
Off |
On | |
|
108h |
On |
Off |
On |
On |
On |
On |
Off |
On | |
|
10Ch |
Off |
Off |
On |
On |
On |
On |
Off |
On | |
|
110h |
On |
On |
Off |
On |
On |
On |
Off |
On | |
|
3ECh |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off | |
|
3F0h |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off | |
|
3F4h |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off | |
|
3F8h |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off | |
|
3FCh |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off | |
|
Note: A total of 192 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. Switch SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: switch SW1/8=512, SW1/7=256, SW1/6=128, SW1/5=64, SW1/4=32, SW1/3=16, SW1/2=8, SW1/1=4. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) | |||||||||
|
BASE ADDRESS SELECTION | ||||||
|
Address |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 | |
| » |
D0000h |
On |
On |
On |
Off |
On |
|
C0000h |
On |
On |
On |
On |
On | |
|
C2000h |
Off |
On |
On |
On |
On | |
|
C4000h |
On |
Off |
On |
On |
On | |
|
C6000h |
Off |
Off |
On |
On |
On | |
|
C8000h |
On |
On |
Off |
On |
On | |
|
F6000h |
Off |
Off |
On |
Off |
Off | |
|
F8000h |
On |
On |
Off |
Off |
Off | |
|
FA000h |
Off |
On |
Off |
Off |
Off | |
|
FC000h |
On |
Off |
Off |
Off |
Off | |
|
FE000h |
Off |
Off |
Off |
Off |
Off | |
|
Note: A total of 32 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. Switch SW1/5 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: switch SW1/5=8192, SW1/4=4096, SW1/3=2048, SW1/2=1024, SW1/1=512. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) | ||||||
|
INTERRUPT SELECTION | |||||||
|
IRQ |
J1/A |
J1/B |
J1/C |
J1/D |
J1/E |
J2/A | |
| » |
10 |
Open |
Open |
Open |
Open |
Closed |
Open |
|
2/9 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
3 |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
4 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
11 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
12 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
14 |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
15 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
INTERRUPT SELECTION (CON’T) | ||||||
|
IRQ |
J2/B |
J2/C |
J2/D |
J2/E |
J2/F | |
| » |
10 |
Open |
Open |
Open |
Open |
Open |
|
2/9 |
Open |
Open |
Open |
Open |
Closed | |
|
3 |
Open |
Open |
Open |
Open |
Open | |
|
4 |
Closed |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Closed |
Open |
Open |
Open | |
|
6 |
Open |
Open |
Closed |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Closed |
Open | |
|
11 |
Open |
Open |
Open |
Open |
Open | |
|
12 |
Open |
Open |
Open |
Open |
Open | |
|
14 |
Open |
Open |
Open |
Open |
Open | |
|
15 |
Open |
Open |
Open |
Open |
Open | |
|
SRAM CONFIGURATION |
|
Note: The exact configuration of memory is unidentified. |
|
DUAL PORTED RAM CONFIGURATION |
|
Note: The exact configuration of memory is unidentified. |
