DECISION COMPUTER INTERNATIONAL CO., LTD.
16 CHANNEL RELAY OUTPUT/PHOTO-ISOLATOR
|
Card Type |
Data acquisition |
|
Chip Set |
NEC 8255 |
|
I/O Options |
Opto-isolated input port, relay control output port |
|
Data Bus |
8-bit ISA |
|

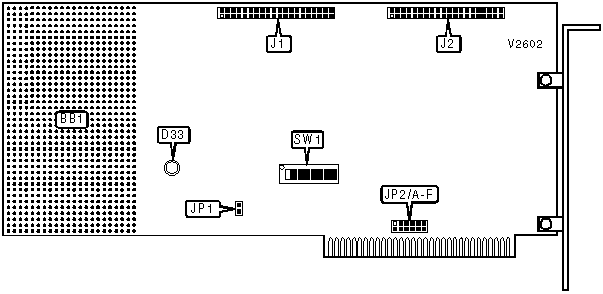

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Breadboard |
BB1 |
Relay control output (see pinout below) |
J2 |
|
Opto-isolated input (see pinout below) |
J1 | ||
|
J1 PINOUT | |||
|
Function |
Pins |
Function |
Pins |
|
Channel 1 relay control |
1 & 2 |
Channel 11 relay control |
21 & 22 |
|
Channel 2 relay control |
3 & 4 |
Channel 12 relay control |
23 & 24 |
|
Channel 3 relay control |
5 & 6 |
Channel 13 relay control |
25 & 26 |
|
Channel 4 relay control |
7 & 8 |
Channel 14 relay control |
27 & 28 |
|
Channel 5 relay control |
9 & 10 |
Channel 15 relay control |
29 & 30 |
|
Channel 6 relay control |
11 & 12 |
Channel 16 relay control |
31 & 32 |
|
Channel 7 relay control |
13 & 14 |
Ground |
33 & 34 |
|
Channel 8 relay control |
15 & 16 |
+5V DC power |
35 & 36 |
|
Channel 9 relay control |
17 & 18 |
+12V DC power |
37 & 38 |
|
Channel 10 relay control |
19 & 20 |
Ground |
39 & 40 |
|
J2 PINOUT | |||
|
Function |
Pin |
Function |
Pin |
|
Channel 1 negative |
1 |
Channel 11 negative |
21 |
|
Channel 1 positive |
2 |
Channel 11 positive |
22 |
|
Channel 2 negative |
3 |
Channel 12 negative |
23 |
|
Channel 2 positive |
4 |
Channel 12 positive |
24 |
|
Channel 3 negative |
5 |
Channel 13 negative |
25 |
|
Channel 3 positive |
6 |
Channel 13 positive |
26 |
|
Channel 4 negative |
7 |
Channel 14 negative |
27 |
|
Channel 4 positive |
8 |
Channel 14 positive |
28 |
|
Channel 5 negative |
9 |
Channel 15 negative |
29 |
|
Channel 5 positive |
10 |
Channel 15 positive |
30 |
|
Channel 6 negative |
11 |
Channel 16 negative |
31 |
|
Channel 6 positive |
12 |
Channel 16 positive |
32 |
|
Channel 7 negative |
13 |
Ground |
33 |
|
Channel 7 positive |
14 |
Ground |
34 |
|
Channel 8 negative |
15 |
+5V DC power |
35 |
|
Channel 8 positive |
16 |
+5V DC power |
36 |
|
Channel 9 negative |
17 |
+12V DC power |
37 |
|
Channel 9 positive |
18 |
+12V DC power |
38 |
|
Channel 10 negative |
19 |
Ground |
39 |
|
Channel 10 positive |
20 |
Ground |
40 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
JP1 |
Unidentified |
|
INTERRUPT | ||||||
|
Setting |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
|
IRQ2 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ3 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ6 |
Open |
Open |
Open |
Open |
Closed |
Open |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
Open |
|
BASE I/O ADDRESS | |||||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
|
000h |
On |
On |
On |
On |
On |
On |
On |
On | |
|
004h |
Off |
On |
On |
On |
On |
On |
On |
On | |
|
008h |
On |
Off |
On |
On |
On |
On |
On |
On | |
|
00Ch |
Off |
Off |
On |
On |
On |
On |
On |
On | |
|
010h |
On |
On |
Off |
On |
On |
On |
On |
On | |
| » |
1A0h |
On |
Off |
Off |
On |
Off |
On |
On |
On |
|
3ECh |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off | |
|
3F0h |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off | |
|
3F4h |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off | |
|
3F8h |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off | |
|
3FCh |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off | |
|
Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/1 is the Most Significant Bit and switch SW1/8 is the Least Significant Bit. The switches have the following decimal values: SW1/1=512, SW1/2=256, SW1/3=128, SW1/4=64, SW1/5=32, SW1/6=16, SW1/7=8, SW1/8=4. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) | |||||||||
|
DIAGNOSTIC LED(S) |
|
The function of the LED D33 is unidentified. |
