Card Type	Memory card
Chip Set	Unidentified
Maximum Onboard Memory	576KB DRAM
I/O Options	None
Data Bus	8-bit ISA

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	SW1/5	On
	Memory parity check enabled	SW1/6	On
	Memory parity check disabled	SW1/6	Off
»	Factory configured - do not alter	SW1/7	N/A
»	Factory configured - do not alter	SW1/8	N/A

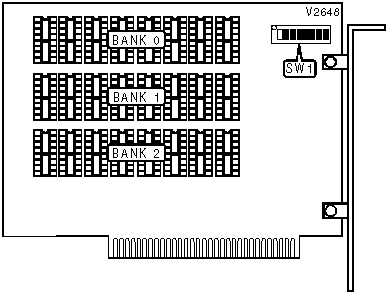

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
192KB	(8) 64K x 1	(8) 64K x 1	(8) 64K x 1
384KB	(8) 256K x 1	(8) 64K x 1	(8) 64K x 1
512KB	(8) 256K x 1	(8) 256K x 1	NONE
576KB	(8) 256K x 1	(8) 256K x 1	(8) 64K x 1

DRAM JUMPER CONFIGURATION
Size	SW1/3	SW1/4
192KB	Off	Off
384KB	On	Off
512KB	Off	On
576KB	On	On

ADDRESS CONFIGURATION
Address	SW1/1	SW1/2
0KB	Off	Off
64KB	On	Off
128KB	Off	On
256KB	On	On
