Card Type	Multi-I/O
Processor	3051
Processor Speed	20MHz
Chipset	Unidentified
Maximum Onboard Memory	1MB dual-ported RAM
I/O Options	Parallel ports (4), serial ports (64)
Data Bus	MCA
Card Size	Full height, full length

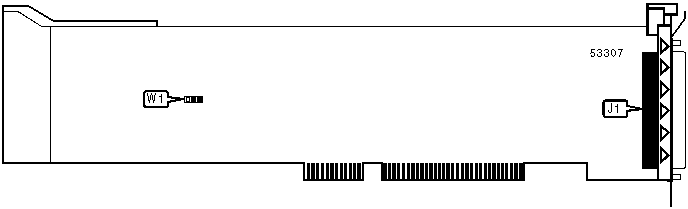

CONNECTIONS
Function	Label
Serial/parallel ports via unidentified connector	J1
Note:Standard DB-25 serial and parallel ports are provided on external expansion boxes.

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	W1	Pins 2 & 3 closed
