CREATIVE LABS, INC.
SOUNDBLASTER 16 SONY ASP (CT2230S), SOUNDBLASTER 16 SONY (CT2239S)
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
None |
|
I/O Options |
Game/MIDI port, CD-ROM interface, speaker out, line out, line in, microphone in, CD-ROM audio in, PC speaker connector |
|
Data Bus |
16-bit ISA |
|

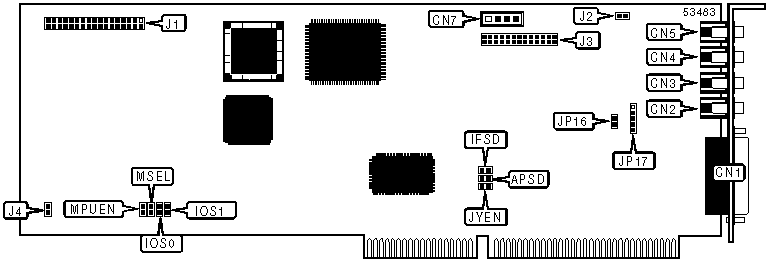

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Game/MIDI port |
CN1 |
Audio in - CD-ROM |
CN7 |
|
Speaker out |
CN2 |
CD-ROM interface - Sony |
J1 |
|
Line out |
CN3 |
PC speaker connector |
J2 |
|
Microphone in |
CN4 |
Unidentified |
J3 |
|
Line in |
CN5 |
Audio connector |
JP17 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Joystick enabled |
JYEN |
Closed |
|
Joystick disabled |
JYEN |
Open | |
| » |
Speaker enabled |
JP16 |
Closed |
|
Speaker disabled |
JP16 |
Open | |
| » |
Factory default - do not alter |
J4 |
Closed |
| » |
MPU-401 port enabled |
MPUEN |
Closed |
|
MPU-401 port disabled |
MPUEN |
Open | |
|
AUDIO I/O ADDRESS SELECTION | |||
|
Address |
IOS0 |
IOS1 | |
| » |
220h |
Closed |
Closed |
|
240h |
Open |
Closed | |
|
260h |
Closed |
Open | |
|
280h |
Open |
Open | |
|
MPU-401 I/O ADDRESS SELECTION | ||
|
Address |
MSEL | |
|
300h |
Open | |
| » |
330h |
Closed |
|
CSP CHIP SELECTION | |||
|
IFSD |
APSD | ||
| » |
Disabled |
Closed |
Closed |
|
Enabled |
Open |
Open | |
|
Note: The IFSD and APDS jumpers are enabled on the CT2230S and are disabled on the CT2239s | |||
