Card Type	Serial card
Chip Set	Unidentified
I/O Options	Serial port
Data Bus	32-bit PCI

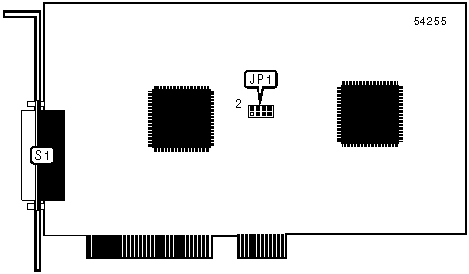

CONNECTIONS
Function	Label
Serial port	S1

SERIAL PORT CLOCK SPEED SELECTION
Speed		JP1
»	1.8432MHz	Pins 1 & 2 closed
	3.6864MHz	Pins 3 & 4 closed
	7.3728MHz	Pins 5 & 6 closed
	14.7456MHz	Pins 7 & 8 closed
