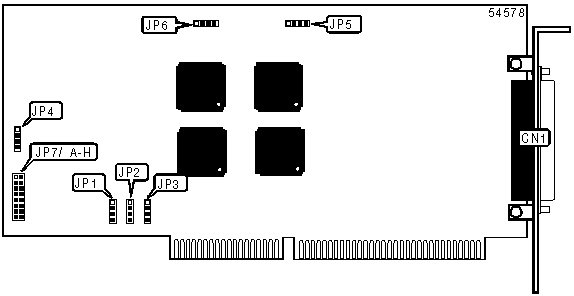

CHASE RESEARCH, INC.
CHASE AT-FAST 16
|
Card Type |
Serial card |
|
Chip Set |
Unidentified |
|
I/O Options |
Serial ports (16) |
|
Card Size |
Half-length, full-height |
|
CONNECTIONS | |
|
Function |
Label |
|
Serial ports via 78 pin connector |
CN1 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
0ms setting |
JP4 |
Pins 1 & 2 closed |
|
2ms setting |
JP4 |
Pins 3 & 4 closed |
|
I/O ADDRESS SELECTION | |||
|
Address |
JP1 |
JP2 |
JP3 |
|
100 |
Pins 1 & 2 closed |
Pins 3 & 4 closed |
Pins 1 & 2 closed |
|
180 |
Pins 1 & 2 closed |
Pins 3 & 4 closed |
Pins 3 & 4 closed |
|
200 |
Pins 3 & 4 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
280 |
Pins 3 & 4 closed |
Pins 1 & 2 closed |
Pins 3 & 4 closed |
|
300 |
Pins 3 & 4 closed |
Pins 3 & 4 closed |
Pins 1 & 2 closed |
|
380 |
Pins 3 & 4 closed |
Pins 3 & 4 closed |
Pins 3 & 4 closed |
|
SIGNAL SET SELECTION | ||
|
Function |
Label |
Position |
|
Signal set: TXD, RXD, GND, RTS, CTS |
JP5 |
RTS |
|
Signal set: TXD, RXD, GND, DTR, CTS |
JP5 |
DTR |
|
START UP SPEED SELECTION | ||
|
Function |
Label |
Position |
|
Card starts in high speed mode |
JP6 |
Pins 1 & 2 closed |
|
Card starts in normal speed mode |
JP6 |
Pins 2 & 3 closed |
|
INTERRUPT SELECTION | ||||||||
|
IRQ |
JP3/A |
JP3/B |
JP3/C |
JP3/D |
JP3/E |
JP3/F |
JP3/G |
JP3/H |
|
IRQ15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ12 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ11 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ10 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
IRQ7 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ4 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
IRQ3 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
