Card Type	Sound card
Chip Set	Yamaha
I/O Options	Wavetable connector, audio in - CD-ROM (3), game port, mono in, speaker out (2), line in (2), microphone in (2)
Data Bus	16-bit ISA
Card Size	Half-length, half-height card

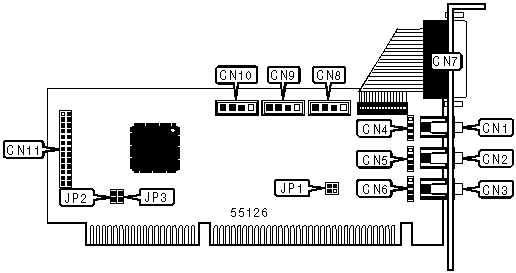

CONNECTIONS
Function	Label	Function	Label
Speaker out - external	CN1	Game port	CN7
Line in - external	CN2	Audio in - CD-ROM	CN8
Microphone in - external	CN3	Audio in - CD-ROM	CN9
Speaker out - internal	CN4	Audio in - CD-ROM	CN10
Line in - internal	CN5	Wavetable connector	CN11
Microphone in - internal	CN6	Mono in	JP1

VOLUME SETTINGS
Function	JP2	JP3
High volume	Closed	Open
Low volume	Open	Closed
