DIALOGIC CORPORATION
D/41EPCI
|
Card Type |
Voice processor card |
|
Chip Set |
Motorola |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
RJ-11 jacks (4), CTbus interface, 52-pin connector, 20-pin connectors (2) |
|
Data Bus |
32-bit PCI |
|
Card Size |
Full-length, full-height |
|

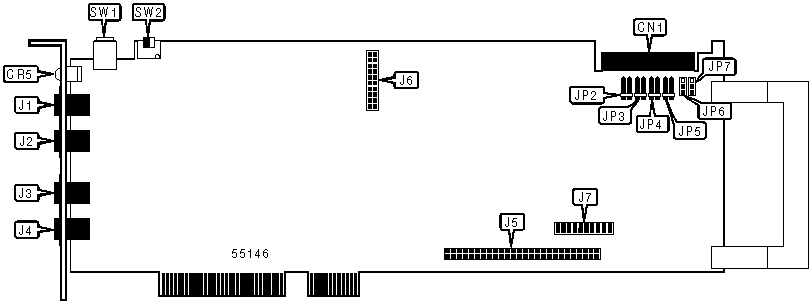

CONNECTIONS |
||||||
|
Function |
Label |
Function |
Label |
|||
|
CTbus interface |
CN1 |
Channel 4 via RJ-11 |
J4 |
|||
|
Channel 1 via RJ-11 |
J1 |
52-pin fax daughter card connector |
J5 |
|||
|
Channel 2 via RJ-11 |
J2 |
20-pin fax daughter card connector |
J6 |
|||
|
Channel 3 via RJ-11 |
J3 |
20-pin fax daughter card connector |
J7 |
|||
|
USER CONFIGURABLE SETTINGS |
||
|
Function |
Label |
Position |
|
Board ID selection |
SW1 |
See note |
|
» Hook switch set for on hook operation |
SW2/1 |
Off |
|
Hook switch set to off hook operation |
SW2/1 |
On |
|
» Board ID range set to 0 - 15 |
SW2/2 |
Off |
|
Board ID range set to 16 - 31 |
SW2/2 |
On |
|
Note: SW1 is a rotary switch used to determine the Board ID settings. The default Board ID setting is 0. SW1 is used in concurrence with SW2/2. |
||
|
BOARD TERMINATION SETTINGS |
||||||||
|
Setting |
JP2 |
JP3 |
JP4 |
JP5 |
||||
|
» Termination disabled |
Open |
Open |
Open |
Open |
||||
|
Termination enabled |
Closed |
Closed |
Closed |
Closed |
||||
|
CTBUS CLOCK SIGNAL SETTINGS |
||||
|
Setting |
JP6 |
JP7 |
||
|
SCbus |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
||
|
MVIP |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
||
|
DIAGNOSTIC LED |
|||
|
LED |
Color |
Status |
Condition |
|
CR5 |
Unidentified |
On |
The card is receiving power |
|
CR5 |
Unidentified |
Off |
The card is not receiving power |
