DIALOGIC CORPORATION
VFX/40ESC PLUS
|
Card Type |
Voice processor card |
|
Chip Set |
Intel |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
RJ-11 jacks (4), 20-pin AEB connector, 26-pin PEB connector |
|
Data Bus |
16-bit ISA |
|
Card Size |
Full-length, full-height |
|

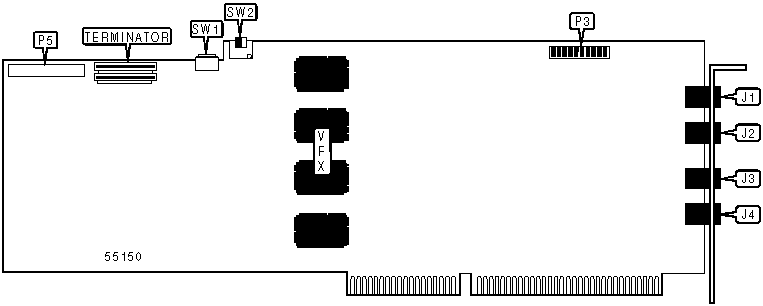

CONNECTIONS |
||||||
|
Function |
Label |
Function |
Label |
|||
|
Channel 1 via RJ-11 |
J1 |
Channel 4 via RJ-11 |
J4 |
|||
|
Channel 2 via RJ-11 |
J2 |
20-pin AEB connector |
P3 |
|||
|
Channel 3 via RJ-11 |
J3 |
26-pin PEB connector |
P5 |
|||
|
USER CONFIGURABLE SETTINGS |
||
|
Function |
Label |
Position |
|
Board ID selection |
SW1 |
See note |
|
» Hook switch set for on hook operation |
SW2/1 |
Off |
|
Hook switch set to off hook operation |
SW2/1 |
On |
|
» Board ID range set to 0 - 15 |
SW2/2 |
Off |
|
Board ID range set to 16 - 31 |
SW2/2 |
On |
|
Note: SW1 is a rotary switch used to determine the Board ID settings. The default Board ID setting is 0. SW1 is used in concurrence with SW2/2. |
||
