Card Type	Cluster controller
Chip Set	Unidentified
I/O Options	Cluster ports (4), daisy-chain connectors
Data Bus	16-bit ISA

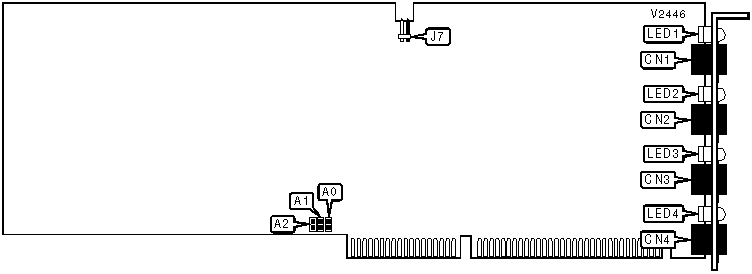

CONNECTIONS
Function	Label	Function	Label
Cluster port 1	CN1	Cluster port 4	CN4
Cluster port 2	CN2	Daisy-chain connector (see pinout below)	J7
Cluster port 3	CN3

J7 PINOUT
Function	Pin	Function	Pin
Signal in	1	Signal out	2
Note:To connect a MEGAPLEX board to a MEGAPORT board, connect pin 2 of J7 on the MEGAPLEX to pin 7 of J2 on the MEGAPORT.

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Card is installed in ISA slot	A0	Open
	Card is installed in EISA slot	A0	Closed
»	Factory configured - do not alter	A1	Open
»	Factory configured - do not alter	A2	Open

DIAGNOSTIC LED(S)

The function of the LEDs is unidentified.
