EQUINOX SYSTEMS, INC.
MEGAPORT/2 XP
|
Card Type |
Serial |
|
Chip Set |
Unidentified |
|
I/O Options |
Serial ports (24) |
|
Data Bus |
MCA |
|

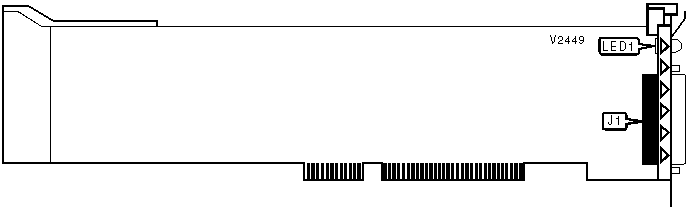

CONNECTIONS | |
|
Function |
Label |
|
Serial ports |
J1 |
|
Note:Standard DB-25 or RJ-45 serial ports are provided on up to three eight-port external modules. | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
Power is being supplied to the port |
|
LED1 |
Unidentified |
Off |
Power is not being supplied to the port |
