Card Type	Serial
Chip Set	Equinox
I/O Options	Serial ports (64)
Data Bus	MCA

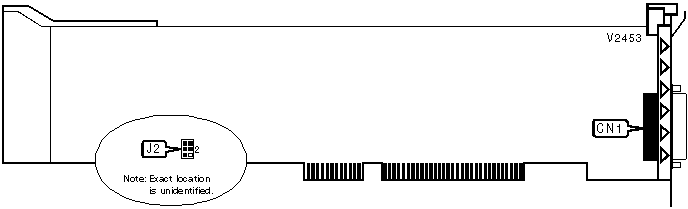

CONNECTIONS
Function	Label
Serial ports via DB-25 connector	CN1
Note:Standard DB-25 or RJ-45 serial ports are provided by up to four external 16-port expansion boxes.

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	J2	Pins 1 & 2, 4 & 5 closed
