GLOBETEK, INC.
S-1003 (REV. 1.1)
|
Card Type |
Serial |
|
Chipset |
Startech ST16C554D |
|
I/O Options |
Serial ports (4) |
|
Data Bus |
16-bit ISA |
|

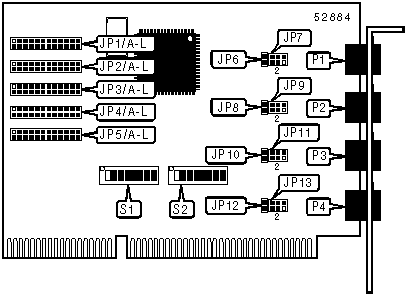

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Serial port 1 via RJ-45 connector |
P1 |
Serial port 3 via RJ-45 connector |
P3 |
|
Serial port 2 via RJ-45 connector |
P2 |
Serial port 4 via RJ-45 connector |
P4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
S2/4 |
Unidentified |
| » |
Factory configured - do not alter |
S2/5 |
Unidentified |
| » |
Status register enabled |
S2/8 |
On |
|
Status register disabled |
S2/8 |
Off | |
|
BASE I/O ADDRESS SELECTION | |||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 | |
|
0000h |
On |
On |
On |
On |
On |
On | |
|
0020h |
On |
On |
On |
On |
On |
On | |
|
0040h |
On |
On |
On |
On |
On |
On | |
|
0060h |
On |
On |
On |
On |
On |
On | |
|
0080h |
On |
On |
On |
On |
On |
On | |
| » |
0320h |
On |
On |
On |
On |
On |
On |
|
FF60h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FF80h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFA0h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFC0h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
FFE0h |
Off |
Off |
Off |
Off |
Off |
Off | |
|
BASE I/O ADDRESS SELECTION (CON’T) | ||||||
|
Setting |
SW1/7 |
SW1/8 |
SW2/1 |
SW2/2 |
SW2/3 | |
|
0000h |
On |
On |
On |
On |
On | |
|
0020h |
On |
On |
On |
On |
Off | |
|
0040h |
On |
On |
On |
Off |
On | |
|
0060h |
On |
On |
On |
Off |
Off | |
|
0080h |
On |
On |
Off |
On |
On | |
| » |
0320h |
Off |
Off |
On |
On |
Off |
|
FF60h |
Off |
Off |
On |
Off |
Off | |
|
FF80h |
Off |
Off |
Off |
On |
On | |
|
FFA0h |
Off |
Off |
Off |
On |
Off | |
|
FFC0h |
Off |
Off |
Off |
Off |
On | |
|
FFE0h |
Off |
Off |
Off |
Off |
Off | |
|
Note: A total of 4096 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/1 is the Most Significant Bit and switch SW2/3 is the Least Significant Bit. The switches have the following decimal values: SW1/1=32768, SW1/2=16384, SW1/3=8192, SW1/4=4096, SW1/5=2048, SW1/6=1024, SW1/7=512, SW1/8=256, SW2/1=128, SW2/2=64, SW2/3=32. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) | ||||||
|
SERIAL PORT CONFIGURATION | |||||
|
Port 1 |
Port 2 |
Port 3 |
Port 4 |
S2/6 |
S2/7 |
|
Enabled |
Disabled |
Disabled |
Disabled |
On |
On |
|
Enabled |
Enabled |
Disabled |
Disabled |
On |
Off |
|
Enabled |
Enabled |
Enabled |
Disabled |
Off |
On |
|
Enabled |
Enabled |
Enabled |
Enabled |
Off |
Off |
|
SERIAL PORT INTERRUPT SELECTION | |||||||
|
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E |
JP1/F | |
|
IR/FONT> |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ3 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ6 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ14 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ15 |
Open |
Closed |
Open |
Open |
Open |
Open | |
| » |
Shared |
Closed |
Open |
Open |
Open |
Open |
Open |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
Open | |
|
SERIAL PORT INTERRUPT SELECTION (CON’T) | |||||||
|
Setting |
JP1/G |
JP1/H |
JP1/I |
JP1/J |
JP1/K |
JP1/L | |
|
IR/FONT> |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
IRQ3 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ6 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ14 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
Shared |
Open |
Open |
Open |
Open |
Open |
Open |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
Open | |
|
Note:JP1 sets the address for port 1. The settings for JP2 through JP4 are identical and set the addresses for ports 2 through 4, respectively. | |||||||
|
SHARED INTERRUPT SELECTION | |||||||
|
Setting |
JP5/A |
JP5/B |
JP5/C |
JP5/D |
JP5/E |
JP5/F | |
|
IR/FONT> |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ3 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ6 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
IRQ11 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ14 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ15 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
Disabled |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
SHARED INTERRUPT SELECTION (CON’T) | |||||||
|
Setting |
JP5/G |
JP5/H |
JP5/I |
JP5/J |
JP5/K |
JP5/L | |
|
IR/FONT> |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
IRQ3 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ6 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Closed |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ14 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
Open | |
|
SERIAL PORT 1 SIGNAL SELECTION | |||
|
Setting |
JP6 |
JP7 | |
| » |
Full 10-wire support |
Open |
Pins 2 & 3, 5 & 6 closed |
|
EIA-561 8-wire |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
SERIAL PORT 2 SIGNAL SELECTION | |||
|
Setting |
JP8 |
JP9 | |
| » |
Full 10-wire support |
Open |
Pins 2 & 3, 5 & 6 closed |
|
EIA-561 8-wire |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
SERIAL PORT 3 SIGNAL SELECTION | |||
|
Setting |
JP10 |
JP11 | |
| » |
Full 10-wire support |
Open |
Pins 2 & 3, 5 & 6 closed |
|
EIA-561 8-wire |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
SERIAL PORT 4 SIGNAL SELECTION | |||
|
Setting |
JP12 |
JP13 | |
| » |
Full 10-wire support |
Open |
Pins 2 & 3, 5 & 6 closed |
|
EIA-561 8-wire |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
