Card Type	Video card
Video Chip Set	Avance Logic
Highest Resolution Supported	1280 x 1024
Maximum Video Memory	2MB DRAM
Data Bus	32-bit PCI
Video Types Supported	XVGA

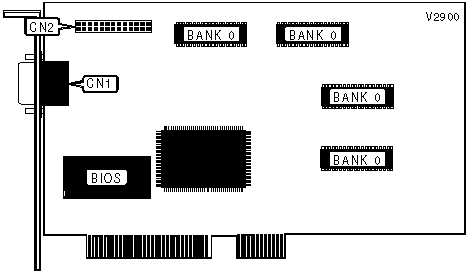

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

DRAM CONFIGURATION
Size	Bank 0
1MB	(2) 256K x 16
2MB	(4) 256K x 16
Note: The specific banks to be filled are unidentified in the 1MB configuration.
